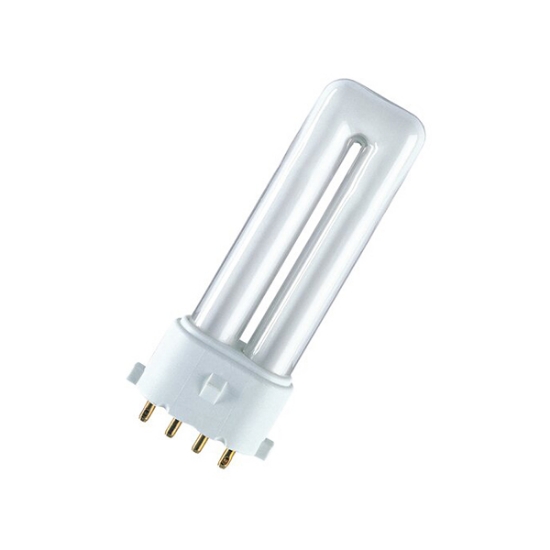

LEDVANCE Dulux S/E 11W 840 Compact Fluorescent Lamp (Sold as 10)

LEDVANCE Dulux S/E 11W 840 Compact Fluorescent Lamp (Sold as 10)

Product benefits

• Long service life

Areas of application

• Offices, public buildings
• Shops
• Supermarkets and department stores
• Hotels, restaurants

Product features

• Good color rendering index
• Dimmable (3…100 %)
• Short and compact pin-base lamps with single-turn tubes
• Single-ended four-pin plug-in 2G7 base

Equipment / Accessories

• Suitable for operation on electronic control gear

Electrical data

• Nominal wattage 11 W
• Construction wattage 12.20 W
• Nominal voltage 91 V
• Nominal current 0.16 A

Photometrical data

• Luminous flux 900 lm
• Luminous efficacy 74 lm/W
• Light color (designation) LUMILUX Cool White
• Color temperature 4000 K
• Color rendering index Ra ≥80
• Light color 840
• Rated LLMF at 2,000 h 0.90
• Rated LLMF at 4,000 h 0.84
• Rated LLMF at 6,000 h 0.83
• Rated LLMF at 8,000 h 0.81
• Rated LLMF at 12,000 h 0.78

Dimensions & Weight

• Overall length 221.80 mm
• Length with base excl. base pins/connection 214,00 mm
• Diameter 12.00 mm
• Tube diameter 12 mm
• Product weight 29.5 g

Lifespan

• Service life 13000 h
• Rated lamp survival factor at 2,000 h 0.99
• Rated lamp survival factor at 4,000 h 0.98
• Rated lamp survival factor at 6,000 h 0.94
• Rated lamp survival factor at 8,000 h 0.84
• Rated lamp survival factor at 12,000 h 0.50
• Lifespan B50 12000 h

Additional product data

• Base (standard designation) 2G7
• Mercury content 1.6 mg
• Product remark For ECG operation only

Capabilities

• Dimmable Yes
