- Sylvania T5 FHE Luxline Plus Tri-Phosphor Tubes (Sold as 25)
- Lamp Style: LED
- Dimming Technology: Phase
- Operating Temperature: 0 to 50deg
- Chip Configuration: COB
- Heat Sink Material: Aluminium (Die Cast)
- Beam Distribution: Symmetric
- Available in Matt and Powercoated
- Available in 14W, 21W, 28W and 35W
Overview -
- Hours (Avg): 24000 Hrs
- Warranty: 1 Year
- CRI: 80
- Base Cap: G5
- Beam Angle: 360deg
- Dimmable: Yes
- Lamp Type: Fluorescent (T5)
Features:
- T5 FHE Luxline Plus triphosphor lamp ideal solution for new, slim, aesthetic luminaires
- High luminous efficacy of up to 104 lm/W
- For electronic ballast operation only
- Suitable for dimming applications on approved dimmable electronic ballast
- Almost constant lumen maintenance throughout the entire lamp life due to Luxline Plus triphosphor technology
- Optimum luminous flux at an ambient temperature of approx 35°C
- Extended life time with 24,000 hours rated average design life with pre-heat ballast
- Lamp should initially be operated at full power for 100 hours prior to any dimming
T5 FHE Luxline Plus tri-phosphor lamp is the ideal solution for new, slim, aesthetic luminaires. The perfect compliment for the Sylvania SlimLite and SlimDim luminaires, the range feratures high luminous efficacy of up to 104 lm/W and almost constant lumen maintenance throughout the entire lamp life due to Luxline Plus tri-phosphor technology.
Hours (Avg) | Warranty | CRI | Base Cap | Beam Angle | Dimmable | Lamp Type |
24000 Hrs | 1 Year | 80 | G5 | 360 deg | Yes | Fluorescent (T5) |

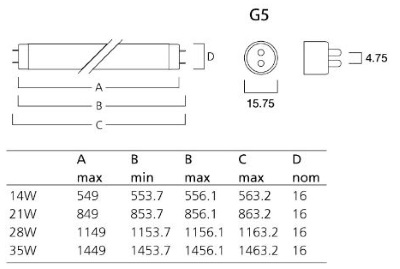

Item Code | Description | Wattage | Lumen Output | Colour Temperature | Voltage | Dimensions H X W X L (mm) | Price |
200761 | FHE14W/T5/840-4000K | 14W | 1350Lm | 4000K | 86V | 16 x 16 x 549 | $225.00 |
200762 | FHE14W/T5/865-6500K | 14W | 1250Lm | 6500K | 86V | 16 x 16 x 549 | $225.00 |
200763 | FHE21W/T5/830-3000K | 21W | 2100Lm | 3000K | 126V | 16 x 16 x 849 | $235.00 |
200764 | FHE21W/T5/840-4000K | 21W | 2100Lm | 4000K | 126V | 16 x 16 x 849 | $235.00 |
200765 | FHE21W/T5/865-6500K | 21W | 1950Lm | 6500K | 126V | 16 x 16 x 849 | $235.00 |
200766 | FHE28W/T5/830-3000K | 28W | 2900Lm | 3000K | 166V | 16 x 16 x 1149 | $260.00 |
200767 | FHE28W/T5/840-4000K | 28W | 2900Lm | 4000K | 166V | 16 x 16 x 1149 | $260.00 |
200768 | FHE28W/T5/865-6500K | 28W | 2700Lm | 6500K | 166V | 16 x 16 x 1149 | $260.00 |
200770 | FHE35W/T5/840-4000K | 35W | 3650Lm | 4000K | 205V | 16 x 16 x 1449 | $290.00 |
200771 | FHE35W/T5/865-6500K | 35W | 3400Lm | 6500K | 205V | 16 x 16 x 1449 | $340.00 |
200767 - 28W/Cool White on due late August 2023
