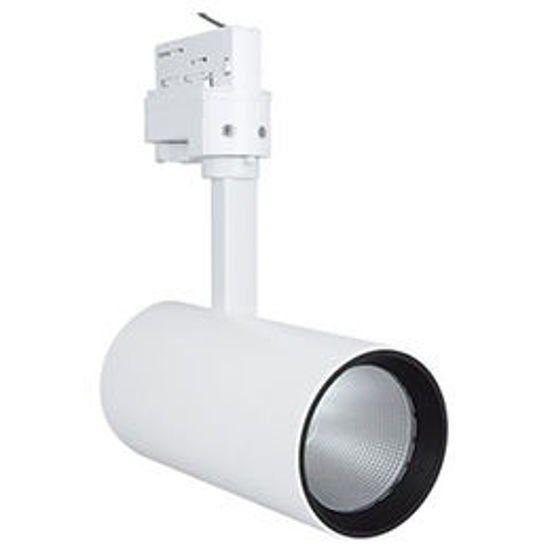

Osram LED Track SP D75 25W/4000K 90RA NFL White (Sold as 4)

Part No: 4058075113466
Call for pricing

Sold as 4

- Osram LED Track SP D75 25W/4000K 90RA NFL White (Sold as 4)
- 3-phase tracklight spot with integrated control gear, low wattage
- 25W
- 4000K
- White
- Other wattage and colour models available here

Product benefits

- Included 3-phase adapter compatible with common tracks (GLOBAL, EUTRAC, POWERGEAR, STAFF, NORLUX, NUCO, NORDIC)
- Deep reflector and black antiglare ring for minimized glare (UGR <16)
- Reflector easily replaceable thanks to bayonet catch and rubber suction pad
- No distraction of attention from the illuminated objects thanks to reduced design
- Low flicker light thanks to special electronic control gear
- 5 years guarantee

Areas of application
- Direct replacement for luminaires using HID lamps
- Accent lighting
- Fashion shops, accessories shops
- Retail
- Hotels, restaurants, shops

Product features
- Compact tracklight spot with integrated control gear
- Rotation angle: 350°, tilt angle: 90°
- Luminaire efficacy: up to 80 lm/W
- Available with color temperature 3000 K or 4000 K
- Very good color rendering index Ra: > 90
- Color rendering index Ra9: > 50
- Initial color consistency: ≤ 3 SDCM
- Equipped with reflectors with 24° beam angle
- Follows the unified LEDVANCE design language (SCALE design)
- Robust die-cast aluminum housing
- Available in matt white (like RAL9016), matt black (like RAL9004) and concrete grey (like RAL7042)

Equipment / Accessories
- Accessory reflectors with 15° or 38° beam angle available



Technical Data

Electrical data
Nominal wattage25.00 W
Operating modeIntegrated LED driver
Nominal voltage220…240 V
Mains frequency50/60 Hz
Power factor λ≥0.90
Max. no. of lum. on circuit break. B16 A32
Max. no. of lum. on circuit break. C10 A26
Max. no. of lum. on circuit break. C16 A41
Inrush current< 23 A
Total harmonic distortion< 15 %
Inrush current time Th50<3.4 µs
Luminaire control gear data
Low flickerYes
Ouput current600 mA
ECG - Output ripple current<10 %
Photometrical data
Color temperature4000 K
Color rendering index Ra90
Light color (designation)Cool White
Luminous flux1900 lm
Luminous efficacy75 lm/W
Standard deviation of color matching≤3 sdcm
Light technical data
Beam angle24 °
Dimensions & weight
Diameter75.0 mm
Height255.0 mm
Product weight770.00 g
Colors & materials
Product colorWhite
Housing colorWhite
Body materialAluminum
Cover materialPolymethylmethacrylate (PMMA)
Temperatures & operating conditions
Ambient temperature range-10…+40 °C
Lifespan
Number of switching cycles50000
Lifespan L70/B50 at 25 °C50000 h
Lifespan L80/B10 at 25 °C45000 h
Lifespan L90/B10 at 25 °C30000 h
Additional product data
Mounting typeSurface
Mounting locationMounting track
Low flickerYes
Capabilities
DimmableNo
Type of connectionAdapter, 3-phasig
LED module replaceableNot replaceable
Certificates & standards
Type of protectionIP20
Protection classI
Protection class IK (shock resistance)IK03
Glow Wire Test according to IEC 695-2-1650 °C
Photobiological safety group EN62778RG 1
StandardsCE/CB/ENEC/TÜV SÜD/EAC/RoHS
