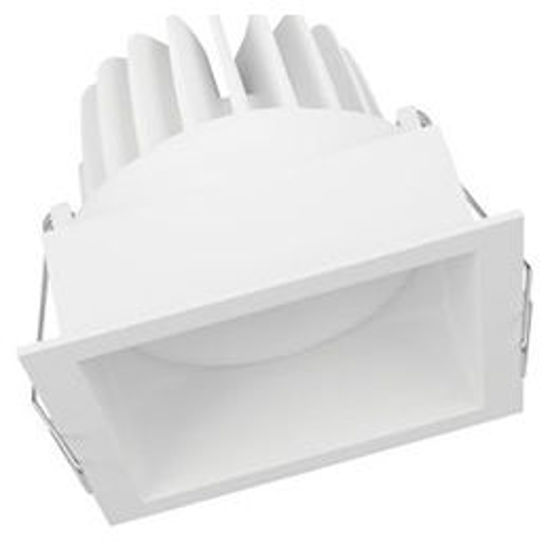

Osram LED Square Darklight 8W White Adjustable Spotlight (Sold as 6)

Part No: 4058075114043
Call for pricing

Sold as 6

- Osram LED Square Darklight 8W Black Adjustable Spotlight (Sold as 6)

- Recessed mounted spotlight, adjustable, square shape
- 8W
- Warm White
- Black model listed here

Product benefits
- Cut off angle for comfortable indoor lighting
– High luminous efficacy
– Die-cast aluminum housing for improved heat dissipation
– Energy savings of up to 90 % compared to halogen lamp spotlights
– External driver for extended flexibility (compatible with selected DALI drivers)
– Easy replacement of external driver thanks to plug with bayonet lock
– Design matches the LEDVANCE Spot-, Down- and Tracklight luminaire family
– 5 years guarantee

Areas of application
- Replacement of halogen lamp spotlights
– General accent lighting
– Shops, boutiques
– Hotel rooms
– Bars, restaurants
– Galleries, museums
– Residential interiors

Product features
- Adjustable tilt angle: +/- 20°
- Initial color consistency: ≤ 4 SDCM
- Lens material: PMMA

Equipment / Accessories
- Driver included



Technical Data

Electrical data
Nominal wattage8.00 W
Operating modeExternal LED driver
Nominal voltage220…240 V
Power factor λ>0.5
Mains frequency50/60 Hz
Max. no. of lum. on circuit break. B16 A32
Max. no. of lum. on circuit break. C10 A26
Max. no. of lum. on circuit break. C16 A41
Inrush current23.0 A
Total harmonic distortion< 15 %
Inrush current time Th50<3.4 µs
Luminaire control gear data
Low flickerYes
ECG - Length78 mm
ECG - Width32 mm
Photometrical data
Color temperature3000 K
Luminous flux650 lm
Luminous efficacy90 lm/W
Standard deviation of color matching≤4 sdcm
Light color (designation)Warm White
Color rendering index Ra>80
Light technical data
Beam angle36 °
Dimensions & weight
Length90.0 mm
Width90.0 mm
Height72.0 mm
Product weight230.00 g
Colors & materials
Body materialAluminum
Product colorBlack
Housing colorBlack
Cover materialPolymethylmethacrylate (PMMA)
Temperatures & operating conditions
Ambient temperature range-10…+40 °C
Lifespan
Number of switching cycles50000
Lifespan L70/B50 at 25 °C50000 h
Lifespan L80/B10 at 25 °C45000 h
Lifespan L90/B10 at 25 °C30000 h
Additional product data
Mounting typeRecessed
Mounting locationCeiling
Low flickerYes
Capabilities
AdjustableYes
DimmableNo
Type of connectionScrew terminal, 2-Pole (L,N)
LED module replaceableNot replaceable
Certificates & standards
Protection class IK (shock resistance)IK03
Glow Wire Test according to IEC 695-2-1650 °C
Photobio. safety group acc. to EN62471RG 0
Protection classII
Type of protectionIP20
StandardsCE/TÜV SÜD/RoHS/ENEC
