Osram LED Spot Multi 1 x 30W 4000K FL White/Black (Sold as 4)

Part No: 4058075113947

$1,119.00 incl tax

Sold as 4

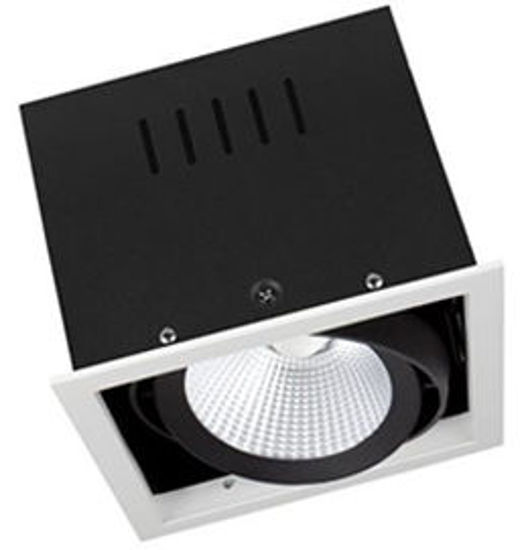

Osram LED Spot Multi 1 x 30W 4000K FL White/Black (Sold as 4)
- Recessed mounted spotlight, swivelable with one spot
- 2x and 3x LED Spotlights models listed here

Product benefits

- Low flicker light thanks to special electronic control gear
- High luminous efficacy
- Covering against other ceiling installations thanks to closed sheet steel housing
- Easy replacement of external driver thanks to plug with bayonet lock
- Functional and minimalistic design
- 5 years guarantee

Areas of application
- Accent- and general lighting for all kind of salesrooms
- Fashion shops, accessories shops
- Shops, boutiques
- Hotel rooms
- Cafés

Product features
- Large faceted reflector for high light output
- Beam angle: 38°
- Gimbal adjustment angle: +/- 25°

Equipment / Accessories
- Driver included

Technical Data

Electrical data
Nominal wattage30.00 W
Operating modeExternal LED driver
Nominal voltage220…240 V
Power factor λ≥0.90
Mains frequency50/60 Hz
Max. no. of lum. on circuit break. B16 A32
Max. no. of lum. on circuit break. C10 A26
Max. no. of lum. on circuit break. C16 A41
Inrush current23.0 A
Total harmonic distortion< 15 %
Inrush current time Th50<3.4 µs
Luminaire control gear data
Low flickerYes
ECG - Length113 mm
ECG - Width40 mm
Photometrical data
Color temperature4000 K
Luminous flux2700 lm
Luminous efficacy90 lm/W
Standard deviation of color matching≤4 sdcm
Light color (designation)Cool White
Color rendering index Ra>80
Light technical data
Beam angle38.00 °
Dimensions & weight
Length173.0 mm
Width173.0 mm
Height135.0 mm
Product weight1540.00 g
Colors & materials
Body materialAluminum
Product colorWhite
Housing colorWhite
Cover materialPolymethylmethacrylate (PMMA)
Temperatures & operating conditions
Ambient temperature range-10…+40 °C
Number of switching cycles50000
Lifespan L70/B50 at 25 °C50000 h
Lifespan L80/B10 at 25 °C45000 h
Lifespan L90/B10 at 25 °C30000 h
Additional product data
Mounting typeRecessed
Mounting locationCeiling
Low flickerYes
Type of connectionScrew terminal, 2-Pole (L,N)
LED module replaceableNot replaceable
Certificates & standards
Protection class IK (shock resistance)IK03
Glow Wire Test according to IEC 695-2-1650 °C
Photobiological safety group EN62778RG 1
Protection classII
Type of protectionIP20
