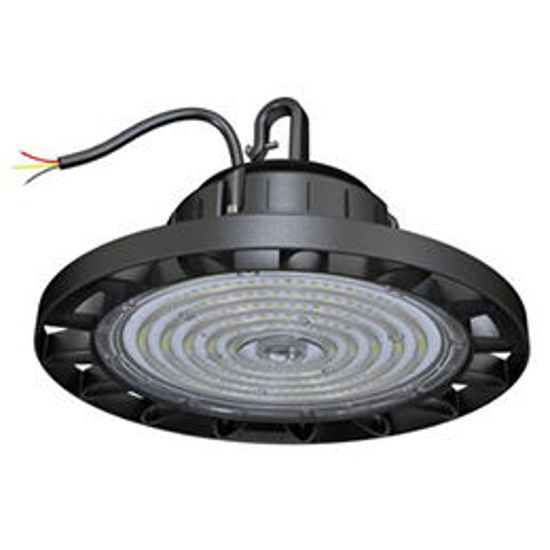

Osram LED Performance 120W 4000K GEN2 HighBay

Part No: 4058075215801
$410.00 incl tax

- Osram LED Performance 120W 4000K GEN2 HighBay
- LED Highbay Pro G2 with Flex & Plug 1.5m
- 120W
- Cool White
- HighBay bracket kit listed here
- Other Highbay models listed here

Product benefits
•  Equipment for suspended and pole mounting included
•  Unique heat sink design with air channels to increase system reliability
•  Low maintenance and operation costs due to long lifetime of LED
•  Single piece lens, color stable and shape-retaining even at high temperatures
•  High efficiency and reliability

Areas of application
•  Industrial and storage facilities
•  Production and assembly facilities
•  Warehouses
•  Loading docks
•  Train stations
•  Aircraft hangers
•  Shopping malls
•  Supermarkets

Product features
•  Four versions with different luminous flux available
•  Luminous efficacy: up to 135 lm/W
•  Lifetime: up to 50,000 h
•  Beam angle: 90°×90° or 70°×70°
•  Color rendering index Ra: ≥ 80
•  Power factor: > 0.9
•  Impact resistance: IK08
•  Type of protection: IP65
•  Robust die-cast aluminum housing
•  CCC marked, CB test certificate

Equipment / Accessories
•  Clips for optional surface mounting available



Technical Data

Electrical data
Nominal wattage120.00 W
Nominal voltage220…240 V
Power factor ?>0.90
Mains frequency50/60 Hz
Photometrical data
Color temperature4000 K
Luminous efficacy135 lm/W
Luminous flux16200 lm
Standard deviation of color matching<5 sdcm
Light color (designation)Cool White
Color rendering index Ra=80
Light technical data
Beam angle90.00 °
Dimensions & weight
Diameter285.0 mm
Height129.5 mm
Product weight2970.00 g
Cable length500 mm
Colors & materials
Body materialAluminum
Product colorBlack
Housing colorBlack
Temperatures & operating conditions
Ambient temperature range-30…+50 °C
Lifespan
Number of switching cycles50000
Additional product data
Mounting typeSuspended
Mounting locationCeiling
Capabilities
DimmableNo
Type of connectionCable, 3-pole
LED module replaceableNot replaceable
Certificates & standards
Protection class IK (shock resistance)IK08
Protection classI
Type of protectionIP65
Logistical data
Temperature range at storage-40…+70 °C
