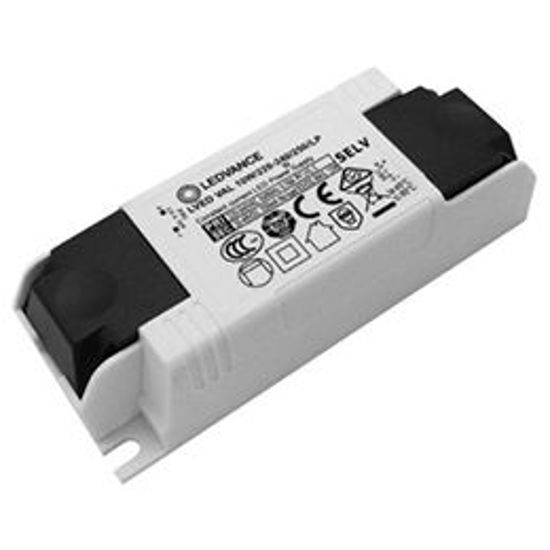

- Osram 10W Low Power Factor LED Driver
- Constant current LED drivers
Product benefits
- Suitable for space-critical installation thanks to compact functional design
- Easy to install and use
Areas of application
- Hotels, shops, hospitality, residential interiors
- Suitable for luminaires of protection class II
- Suitable for indoor SELV installations
Product features
- With CCC, CE, CB and RCM certificate
- Lifetime: up to 30,000 h
- Reversible overtemperature, overload, short-circuit and open-circuit protection
- Integrated cable clamp for luminaire and independent installation
- Operated with Safety extra-low voltage (SELV): < 60 V
- Type of protection: IP20
- Safety complies with IEC 61347-1, IEC 61347-2-2, IEC 61347-2-13, GB 19510
- Radio interference complies with IEC 55015, GB17743
- Harmonic distortion complies with IEC 61000-3-2, IEC 61000-3-3, GB 17625.1
Technical Data
Electrical data | |
Nominal voltage | 220…240 V |
Mains frequency | 50/60 Hz |
Power factor λ | ≥0.5 |
Nominal output voltage | 30…48 V |
Nominal output current | 250 mA |
Nominal output power | 10 W |
Galvanic isolation | SELV |
Dimensions & weight | |
Length | 86.0 mm |
Width | 32.0 mm |
Height | 23.0 mm |
Product weight | 43.20 g |
Colors & materials | |
Casing material | Plastic |
Temperatures & operating conditions | |
Ambient temperature range | -10…+45 °C |
Maximum temperature at tc test point | 80 °C |
Max.housing temperature in case of fault | 110 °C |
Lifespan | |
ECG lifetime | 30000 h |
Capabilities | |
Dimmable | No |
Overheating protection | Reversible |
Overload protection | Reversible |
Short-circuit protection | Reversible |
Certificates & standards | |
Approval marks – approval | CB / CCC / CE / RCM |
Type of protection | IP20 |
Logistical data | |
Temperature range at storage | -20…+85 °C |
