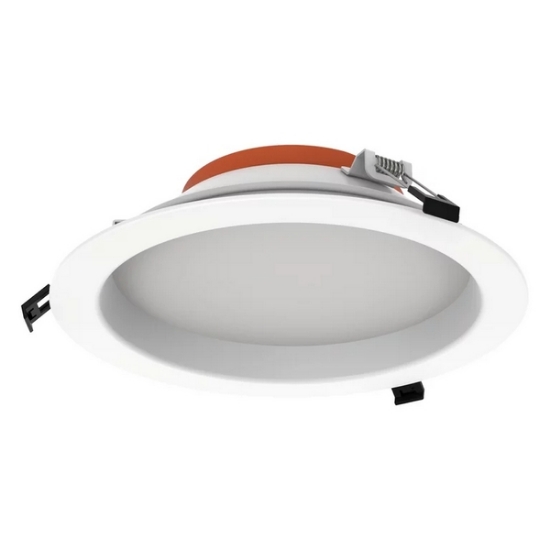

Picture of LEDVANCE ULTRA Commercial Downlight 23/29W 195MM TRI DALI White (Sold as 2)
Picture of LEDVANCE ULTRA Commercial Downlight 23/29W 195MM TRI DALI White (Sold as 2)
Picture of LEDVANCE ULTRA Commercial Downlight 23/29W 195MM TRI DALI White (Sold as 2)

LEDVANCE ULTRA Commercial Downlight 23/29W 195MM TRI DALI White (Sold as 2)

LDECO DL 23/29W 195MM TRI DALI WH 8X1 AU LEDV - This high-performance 23/29W fixture is engineered for professional installations, featuring a 195mm standard cut-out size for easy retrofitting. Enjoy ultimate flexibility with TRI-Colour technology, allowing on-site selection of the perfect light temperature. Crucially, it features DALI dimming (Digital Addressable Lighting Interface) for integration into smart lighting systems, offering individual control, maximum energy savings, and precise scene-setting in any commercial space
Part No: 4099854334016
$400.00 incl tax

LEDVANCE ULTRA Commercial Downlight 23/29W 195MM TRI DALI White (Sold as 2)

Product Benefits:

  • Phase dim: 10.5W, 12W, 14W, 19/14W, 20/14W, 30/23W, 40/30W
  • DALI: 11W, 14.5W, 18W, 18/15W, 20/16W, 29/23W, 39/29W
  • Cut out size in 92mm, 118mm, 135mm, 160mm, 195mm, 240mm
  • Available in phase dimming and DALI

Areas of Application:

  • Public areas
  • Reception areas and foyers
  • Entrances / Hallways
  • Retail and small shops
  • Hospitality
  • Commercial applications
  • Lobbies

Product Features:

  • TRI colour in 3000K, 4000K and 5700K
  • Type of protection: IP54
  • Pre-wired with 1.6m flex and plug
  • Lifetime: up to 50,000 h
  • High luminous efficacy: up to 135 lm/W

Specifications:

  • Nominal wattage: 23 W / 29 W
  • Nominal voltage: 220…240 V
  • Mains frequency: 50…60 Hz
  • Power factor λ: > 0.90
  • Protection class: II
  • Operating mode: External LED driver
  • Luminous flux: 3050 lm / 3750 lm / 3350 lm
  • Luminous efficacy: 130 lm/W
  • Color temperature: 3000 K / 4000 K / 5700 K
  • Light color (designation): Warm White, Cool White, Cool Daylight
  • Color rendering index Ra: 80
  • Beam angle: 105 °
  • Diameter: 230.00 mm
  • Height: 63.00 mm
  • Product weight: 490.00 g
  • Product color: White
  • Housing color: White
  • Body material: Aluminum
  • Type of protection: IP54/IP20
  • Dimmable: Yes
  • Type of dimming: PHASE CUT
  • Mounting type: Recessed
  • Mounting location: Ceiling
  • Application environment: Indoor
  • Mounting diameter: 195.00 mm
