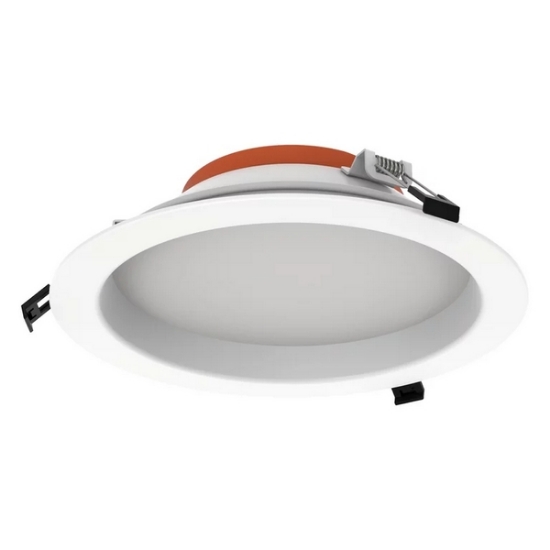

Picture of LEDVANCE ULTRA Commercial Downlight 23/30W 195mm TRI Dimmable (Sold as 2)
Picture of LEDVANCE ULTRA Commercial Downlight 23/30W 195mm TRI Dimmable (Sold as 2)
Picture of LEDVANCE ULTRA Commercial Downlight 23/30W 195mm TRI Dimmable (Sold as 2)
Picture of LEDVANCE ULTRA Commercial Downlight 23/30W 195mm TRI Dimmable (Sold as 2)

LEDVANCE ULTRA Commercial Downlight 23/30W 195mm TRI Dimmable (Sold as 2)

LDECO DL 23/30W 195MM TRI DIM WH 8X1 AU LEDV - Delivering a powerful yet efficient 23/30W output, this downlight is built for demanding commercial environments. It features a versatile 195mm cut-out size for easy installation. Achieve the perfect lighting aesthetic instantly with TRI-Colour technology, allowing you to choose the colour temperature on-site. The dimmable functionality provides complete control over brightness, ensuring maximum flexibility and energy savings.
Part No: 4099854333873
$250.00 incl tax

LEDVANCE ULTRA Commercial Downlight 23/30W 195mm TRI Dimmable (Sold as 2)

Product Benefits:

  • Phase dim: 10.5W, 12W, 14W, 19/14W, 20/14W, 30/23W, 40/30W
  • DALI: 11W, 14.5W, 18W, 18/15W, 20/16W, 29/23W, 39/29W
  • Cut out size in 92mm, 118mm, 135mm, 160mm, 195mm, 240mm
  • Available in phase dimming and DALI

Areas of Application:

  • Public areas
  • Reception areas and foyers
  • Entrances / Hallways
  • Retail and small shops
  • Hospitality
  • Commercial applications
  • Lobbies

Product Features:

  • TRI colour in 3000K, 4000K and 5700K
  • Type of protection: IP54
  • Pre-wired with 1.6m flex and plug
  • Lifetime: up to 50,000 h
  • High luminous efficacy: up to 135 lm/W

Specifications:

  • Nominal wattage: 23 W / 30 W
  • Nominal voltage: 220…240 V
  • Mains frequency: 50…60 Hz
  • Power factor λ: > 0.90
  • Protection class: II
  • Operating mode: External LED driver
  • Luminous flux: 3150 lm / 3900 lm / 3450 lm
  • Luminous efficacy: 130 lm/W
  • Color temperature: 3000 K / 4000 K / 5700 K
  • Light color (designation): Warm White, Cool White, Cool Daylight
  • Color rendering index Ra: 80
  • Beam angle: 105 °
  • Diameter: 230.00 mm
  • Height: 63.00 mm
  • Product weight: 475.00 g
  • Product color: White
  • Housing color: White
  • Body material: Aluminum
  • Type of protection: IP54/IP20
  • Dimmable: Yes
  • Type of dimming: PHASE CUT
  • Mounting type: Recessed
  • Mounting location: Ceiling
  • Application environment: Indoor
  • Mounting diameter: 195 mm
