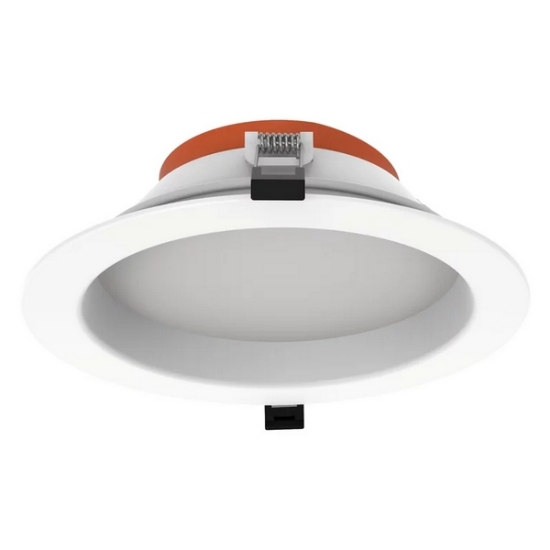

Picture of LEDVANCE ULTRA Commercial Downlight 16/20W 160MM TRI DALI White (Sold as 2)
Picture of LEDVANCE ULTRA Commercial Downlight 16/20W 160MM TRI DALI White (Sold as 2)
Picture of LEDVANCE ULTRA Commercial Downlight 16/20W 160MM TRI DALI White (Sold as 2)

LEDVANCE ULTRA Commercial Downlight 16/20W 160MM TRI DALI White (Sold as 2)

LDECO DL 16/20W 160MM TRI DALI WH 8X1 AU LEDV - This high-performance 16/20W fixture is engineered for professional installations, featuring a 160mm standard cut-out size for easy retrofitting. Enjoy ultimate flexibility with TRI-Colour technology, allowing on-site selection of the perfect light temperature. Crucially, it features DALI dimming (Digital Addressable Lighting Interface) for integration into smart lighting systems, offering individual control, maximum energy savings, and precise scene-setting in any commercial space
Part No: 4099854333996
$370.00 incl tax

LEDVANCE ULTRA Commercial Downlight 16/20W 160MM TRI DALI White (Sold as 2)

Product Benefits:

  • Phase dim: 10.5W, 12W, 14W, 19/14W, 20/14W, 30/23W, 40/30W
  • DALI: 11W, 14.5W, 18W, 18/15W, 20/16W, 29/23W, 39/29W
  • Cut out size in 92mm, 118mm, 135mm, 160mm, 195mm, 240mm
  • Available in phase dimming and DALI

Areas of Application:

  • Public areas
  • Reception areas and foyers
  • Entrances / Hallways
  • Retail and small shops
  • Hospitality
  • Commercial applications
  • Lobbies

Product Features:

  • TRI colour in 3000K, 4000K and 5700K
  • Type of protection: IP54
  • Pre-wired with 1.6m flex and plug
  • Lifetime: up to 50,000 h
  • High luminous efficacy: up to 135 lm/W

Specifications:

  • Nominal wattage: 16 W / 20 W
  • Nominal voltage: 220…240 V
  • Mains frequency: 50…60 Hz
  • Power factor λ: > 0.90
  • Protection class: II
  • Operating mode: External LED driver
  • Luminous flux: 2100 lm / 2500 lm / 2300 lm
  • Luminous efficacy: 125 lm/W
  • Color temperature: 3000 K / 4000 K / 5700 K
  • Light color (designation): Warm White, Cool White, Cool Daylight
  • Color rendering index Ra: 80
  • Beam angle: 105 °
  • Diameter: 230.00 mm
  • Height: 63.00 mm
  • Product weight: 425.00 g
  • Product color: White
  • Housing color: White
  • Body material: Aluminum
  • Type of protection: IP54/IP20
  • Dimmable: Yes
  • Type of dimming: PHASE CUT
  • Mounting type: Recessed
  • Mounting location: Ceiling
  • Application environment: Indoor
  • Mounting diameter: 160.00 mm
