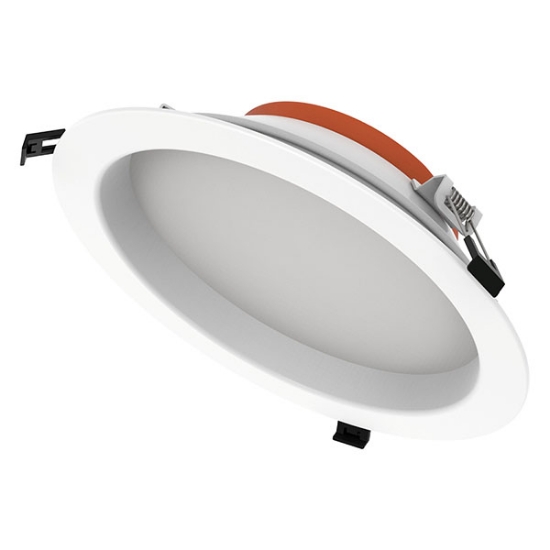

Picture of LEDVANCE Ultra Commercial Downlight 12W 195mm TRI Colour Dim (Sold As 2)
Picture of LEDVANCE Ultra Commercial Downlight 12W 195mm TRI Colour Dim (Sold As 2)
Picture of LEDVANCE Ultra Commercial Downlight 12W 195mm TRI Colour Dim (Sold As 2)
Picture of LEDVANCE Ultra Commercial Downlight 12W 195mm TRI Colour Dim (Sold As 2)

LEDVANCE Ultra Commercial Downlight 12W 195mm TRI Colour Dim (Sold As 2)

LDECO DL 12W 195MM TRI DIM WH - Delivering a powerful yet efficient 12W output, this downlight is built for demanding commercial environments. It features a versatile 195mm cut-out size for easy installation. Achieve the perfect lighting aesthetic instantly with TRI-Colour technology, allowing you to choose the colour temperature on-site. The dimmable functionality provides complete control over brightness, ensuring maximum flexibility and energy savings.
Part No: 4099854333859-copy
$170.00 incl tax

LEDVANCE Ultra Commercial Downlight 12W 195mm TRI Colour Dim (Sold As 2)

Product benefits

  • Phase dim: 10.5W, 12W, 14W, 19/14W, 20/14W, 30/23W, 40/30W
  • DALI: 11W, 14.5W, 18W, 18/15W, 20/16W, 29/23W, 39/29W
  • Cut out size in 92mm, 118mm, 135mm, 160mm, 195mm, 240mm
  • Available in phase dimming and DALI

Areas of application

  • Public areas
  • Reception areas and foyers
  • Entrances / Hallways
  • Retail and small shops
  • Hospitality
  • Commercial applications
  • Lobbies

Product features

  • TRI colour in 3000K, 4000K and 5700K
  • Type of protection: IP54
  • Pre-wired with 1.6m flex and plug
  • Lifetime up to 50,000 h
  • High luminous efficacy: up to 135 lm/W

Electrical data

  • Nominal wattage 12.00 W
  • Nominal voltage 220…240 V
  • Mains frequency 50…60 Hz
  • Power factor λ > 0.90
  • Protection class II
  • Operating mode External LED driver

Photometrical data

  • Luminous flux 1450 lm / 1600 lm / 1550 lm
  • Luminous efficacy 135 lm/W
  • Color temperature 3000 K / 4000 K / 5700 K
  • Light color (designation) Warm White, Cool White, Cool Daylight
  • Color rendering index Ra 80
  • Beam angle 105 °
  • UGR < 22

Dimensions & Weight

  • Diameter 230.00 mm
  • Height 63.00 mm
  • Product weight 475.00 g

Materials & Colors

  • Product color White
  • Housing color White
  • Body material Aluminum
  • Mercury content 0.0 mg

Application & Mounting

  • Ambient temperature range -20…+40 °C
  • Type of protection IP54/IP20
  • Dimmable Yes
  • Type of dimming PHASE CUT
  • Mounting type Recessed
  • Mounting location Ceiling
  • Application environment Indoor
  • Mounting diameter 195 mm
  • Replaceable light source No

Lifespan

  • Lifespan L70/B50 at 25 °C 50000 h
