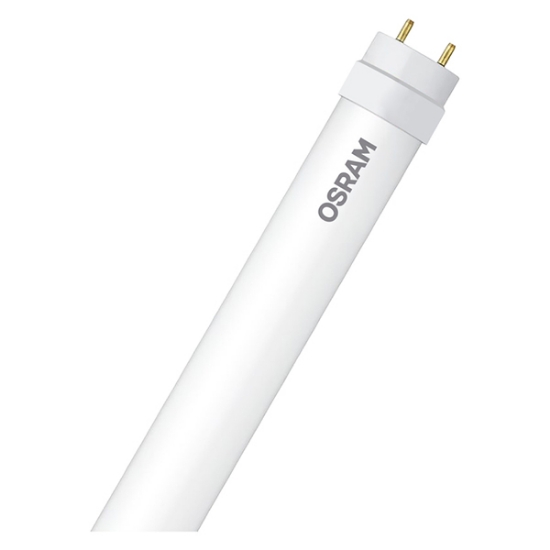

LEDVANCE SubstiTUBE T8 EM VALUE ST8V-1.2M 16W 4000K 1200mm (Sold as 25)

LEDVANCE SubstiTUBE T8 EM VALUE ST8V-1.2M 16W 4000K 1200mm (Sold as 25)

Product benefits

• Quick, simple and safe replacement of fluorescent lamps without rewiring the CCG
• Realistic color rendering thanks high color saturation and excellent color rendering index
• Outstanding quality of light
• Lower maintenance cost thanks to longer lifetime than traditional Fluorescent
• Correct operation even at low temperatures
• RoHS-conformity
• Mercury-free
• High color rendition (Ra≥80) with excellent color fidelity for a true lighting effect

Areas of application

• Train stations
• Offices
• Underground stations
• Supermarkets and department stores
• Parking lots & Alleys
• Warehouses

Product features

• LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires
• Lifetime up to 30,000 h
• High luminous efficacy: up to 112 lm/W

Electrical data

• Nominal wattage 16 W
• Construction wattage 16.00 W
• Nominal voltage 230 V
• Nominal current 125 mA
• Operating frequency 50/60 Hz
• Mains frequency 50/60 Hz
• Power factor λ > 0.50

Photometrical data

• Luminous flux 1800 lm
• Luminous efficacy 112 lm/W
• Light color (designation) Cool White
• Color temperature 4000 K
• Color rendering index Ra > 80
• Light color 840
• Standard deviation of color matching ≤6 sdcm
• Light technical data
• Beam angle › 160.00 °
• Starting time < 0.5 s

Dimensions & Weight

• Overall length 1213.60 mm
• Diameter 28.00 mm
• Product weight 96.00 g

Temperatures & operating conditions

• Ambient temperature range -20…+45 °C

Lifespan

• Lifespan L70/B50 at 25 °C 30000 h
• Number of switching cycles 100000
• Additional product data
• Base (standard designation) G13
• Mercury content 0.0 mg
• Mercury-free Yes

Capabilities

• Dimmable No

Certificates & Standards

• Type of protection IP20
