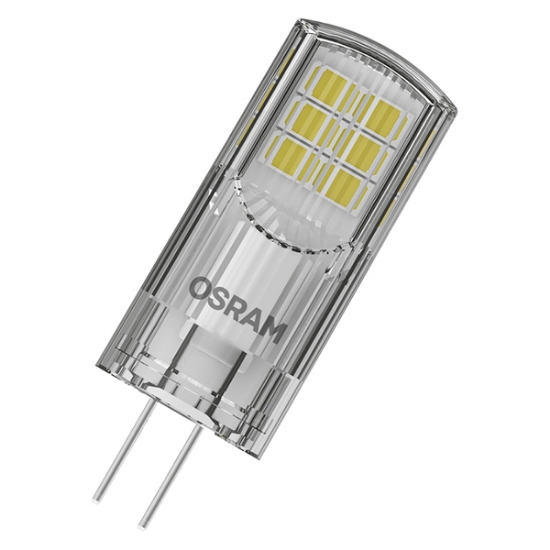

Picture of LEDVANCE PARATHOM LED PIN 12V P PIN 2.6W 2700K G4
Picture of LEDVANCE PARATHOM LED PIN 12V P PIN 2.6W 2700K G4
Picture of LEDVANCE PARATHOM LED PIN 12V P PIN 2.6W 2700K G4
Picture of LEDVANCE PARATHOM LED PIN 12V P PIN 2.6W 2700K G4

LEDVANCE PARATHOM LED PIN 12V P PIN 2.6W 2700K G4

LEDPPIN30 CL 2,6W/827 12V G4 OSRAM
Part No: 4058075432048
Old price: $335.00 incl tax
$300.00 incl tax

LEDVANCE PARATHOM LED PIN 12V P PIN 2.6W 2700K G4

Product benefits

  • Variable use at Direct Current and Alternating Current
  • Good all-around light emission
  • Ideal for decorative and free-burning applications
  • Long lifetime of up to 15,000 h
  • Four year guarantee
  • Lower energy consumption than incandescent or halogen lamps

Areas of application

  • Decorative applications
  • Atmospheric accent lighting throughout the home
  • Shops, hotels and restaurants
  • Outdoor use in suitable outdoor luminaires only

Product features

  • Compatible with many common conventional and electronic control gears (see also compatibility list)
  • LED alternative to low voltage halogen lamps
  • Base: G4

Electrical data

  • Nominal wattage 2.6 W
  • Construction wattage 2.60 W
  • Nominal voltage 12 V
  • Operating mode 12V AC/DC
  • Claimed equiv. conventional lamp power 30 W
  • Nominal current 350 mA
  • Type of current AC/DC
  • Inrush current 12.3 A
  • Max. lamp number on MCB B10 A 48
  • Max. lamp number on MCB B16 A 61
  • Total harmonic distortion < 120 %
  • Power factor λ > 0.50

Photometrical data

  • Luminous flux 300 lm
  • Nominal useful luminous flux 90° 300 lm
  • Luminous efficacy 115 lm/W
  • Lumen main.fact.at end of nom.life time 0.70
  • Light color (designation) Warm White
  • Color temperature 2700 K
  • Color rendering index Ra 80
  • Light color 827
  • Standard deviation of color matching ≤6 sdcm
  • Rated LLMF at 6,000 h 0.80
  • Light technical data
  • Beam angle 320 °
  • Warm-up time (60 %) ‹ 0.50 s
  • Starting time < 0.5 s

Dimensions & Weight

  • Overall length 40.00 mm
  • Diameter 14,0 mm
  • Maximum diameter 14 mm
  • Product weight 4.4 g

Temperatures & operating conditions

  • Ambient temperature range -20…+40 °C
  • Maximum temperature at tc test point 105 °C

Lifespan

  • Number of switching cycles 100000
  • Lumen maintenance at end of service lifetime 0.70
  • Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

  • Base (standard designation) G4
  • Mercury content 0.0 mg
  • Mercury-free Yes

Capabilities

  • Dimmable No
