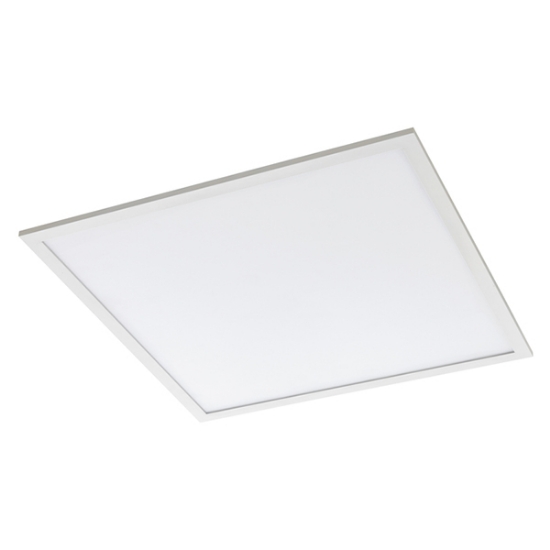

LEDVANCE Panel Pro 0606 33/20W UGR19 S3 TRI

LEDVANCE Panel Pro 0606 33/20W UGR19 S3 TRI

Product benefits

• Optional for DALI2.0 and Triac Dimmable
• High performance with CRI90 and up to 120 lm/W
• Highly versatile due to selectable CCT (3000K, 3500K and 4000K)
• High color consistency with SDCM<3 @4000K or 3000K
• Low glare design (UGR<19)
• External driver for extended flexibility and easy installation
• Flicker-free driver
• 1.5m flex & plug with inline fast connector
• 5 years guarantee

Areas of application

• Direct replacement for recessed luminaires with fluorescent lamps
• Offices, conference rooms
• Reception areas, foyers, corridors, elevators
• Schools, public buildings
• Suitable for recessed ceiling systems
• Compatible with universal accessories and surface mount frame

Equipment / Accessories

• Surface mounting frames available as accessories

Electrical data

• Nominal wattage 33 W / 20.0 W
• Nominal voltage 220…240 V
• Mains frequency 50…60 Hz
• Power factor λ > 0.90
• Protection class II
• Operating mode External LED driver

Photometrical data

• Luminous flux 3960 lm / 2400 lm
• Luminous efficacy 120 lm/W
• Color rendering index Ra 90
• Low flicker Yes
• Beam angle 90 °

Dimensions & Weight

• Length 595.00 mm
• Height 32.00 mm
• Width 595.00 mm
• Product weight 1834.00 g

Materials & Colors

• Product color White
• Body material Aluminum

Application & Mounting

• Ambient temperature range -10…40 °C
• Type of protection IP54/IP20
• Dimmable Yes
• Mounting type Recessed | Suspended
• Application environment Indoor
• Mounting length 595.00 mm
• Mounting width 595.00 mm
• Replaceable light source No

Lifespan

• Lifespan L70/B50 at 25 °C 60000 h (1)

Control gear

• ECG - Width 595.00 mm
• ECG - Height 32 mm
