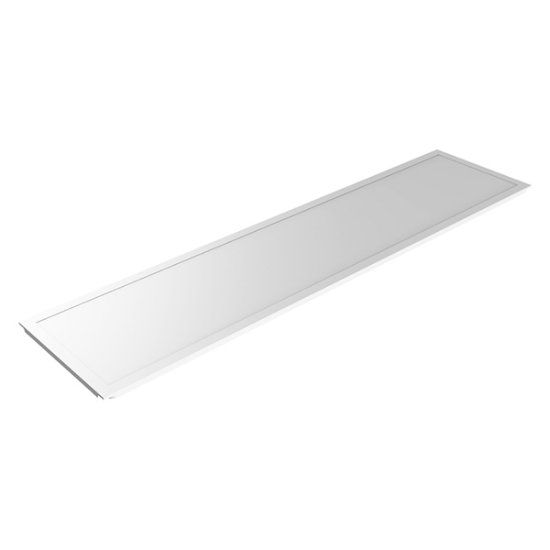

Picture of LEDVANCE Panel Pro 0312 33/20W UGR19 S3 TRI
Picture of LEDVANCE Panel Pro 0312 33/20W UGR19 S3 TRI
Picture of LEDVANCE Panel Pro 0312 33/20W UGR19 S3 TRI

LEDVANCE Panel Pro 0312 33/20W UGR19 S3 TRI

LDPFM PAN0312 33/20W TRI U19 S3 - The LEDVANCE Panel 0312 TRI is a high-performance LED panel delivering bright, even, and energy-efficient lighting. With its slim design and TRI-colour selection (warm, cool, and daylight), it’s perfect for offices, retail spaces, and modern interiors. Easy to install and built for long-lasting performance.
Part No: 4099854398773
$255.00 incl tax

LEDVANCE Panel Pro 0312 33/20W UGR19 S3 TRI

Electrical data

  • Nominal wattage 33 W / 20.0 W
  • Nominal voltage 220…240 V
  • Mains frequency 50…60 Hz
  • Power factor λ > 0.90
  • Protection class II
  • Operating mode External LED driver

Photometrical data

  • Luminous flux 3960 lm / 2400 lm
  • Luminous efficacy 120 lm/W
  • Color rendering index Ra 90
  • Low flicker Yes
  • Beam angle 90 °

Dimensions & Weight

  • Length 1195.00 mm
  • Height 32.00 mm
  • Width 295.00 mm
  • Product weight 1844.00 g

Materials & Colors

  • Product color White
  • Body material Aluminum

Application & Mounting

  • Ambient temperature range -10…40 °C
  • Type of protection IP54/IP20
  • Dimmable Yes
  • Mounting type Recessed | Suspended
  • Application environment Indoor
  • Mounting length 1195.0 mm
  • Mounting width 295,0 mm
  • Replaceable light source No

Equipment / Accessories

  • Surface mounting frames available as accessories

Lifespan

  • Lifespan L70/B50 at 25 °C 60000 h (1)

Control gear

  • ECG - Width 295,0 mm
  • ECG - Height 32 mm
