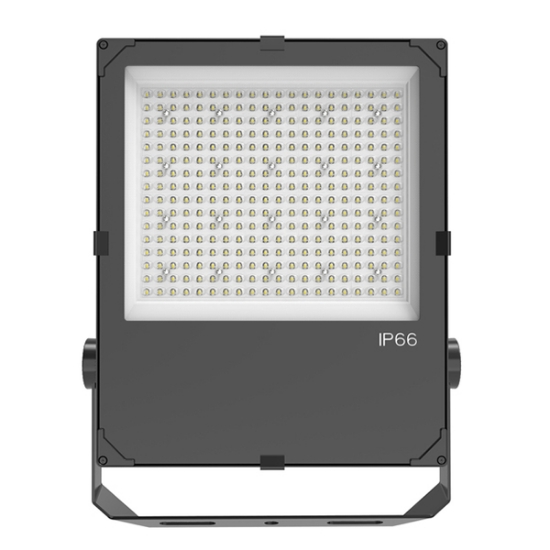

LEDVANCE Maxpro Floodlight 600W-500W-400W 5000K

LEDVANCE Maxpro Floodlight Fl LFLMP600MW 600/500/400W 5000K

Product benefits

• Bright, robust and durable
• Highly versatile due to selectable power steps (Multi Lumen) on the housing
• 5 years guarantee
• Durable: robust, corrosion-resistant luminaire housing

Areas of application

• Industrial lighting (e.g. manufacturing plants, logistic centers, warehouses)
• Sports facilities
• City roads, industrial roads, parking lots
• Tunnels, underpasses

Product features

• Multi Power and Multi lumen, power selectable
• Luminous efficacy: 160 lm/W
• Corrosion-resistant casing made of powder-coated die-cast aluminum
• Asymmetric light distribution for area lighting
• Flicker free
• Input voltage: 110…277 V
• Surge protection: up to 6 kV (L-N), 6 kV (L/N-PE)
• Overtemperature protection: Thermal management at high tc temperatures

Electrical data

• Nominal wattage 600 W / 500 W / 400 W
• Nominal voltage 110…277 V
• Mains frequency 50…60 Hz
• Nominal current 2580.000 mA
• Inrush current 120 A
• Inrush current time Th50 316 µs
• Max. number of luminaires per miniature circuit breaker B16 1
• Max. number of luminaires per miniature circuit breaker C10 1
• Max. number of luminaires per miniature circuit breaker C16 2
• Power factor λ > 0.90
• Total harmonic distortion < 18 %
• Protection class I
• Surge capability (L-N) > 6 kV
• Surge capability (L/N-Ground) > 6 kV
• Operating mode Integrated LED driver

Photometrical data

• Luminous flux 96000 lm / 80000 lm / 64000 lm
• Luminous efficacy 160 lm/W
• Color temperature 5000 K
• Light color (designation) White
• Color rendering index Ra 80
• Standard deviation of color matching < 6 sdcm
• Low flicker Yes
• Flickering metric (Pst LM) <1
• Photobiological safety group acc. to EN62778 RG1
• Beam angle 60 ° x 135 °

Dimensions & Weight

• Length 521.00 mm
• Height 83.00 mm
• Width 656.00 mm
• Product weight 15700.00 g
• Cable length 1500 mm

Materials & Colors

• Product color Black
• Housing color Black
• Body material Aluminum
• Cover material Glass
• Light emitting surface material Glass
• Glow Wire Test according to IEC 60695-2-12 650 °C
• Mercury content 0.0 mg

Application & Mounting

• Ambient temperature range -30…+50 °C
• Temperature range at storage -40…+80 °C
• Type of connection Cable, 3-pole
• Type of protection IP66
• Protection class IK (shock resistance) IK08
• Dimmable No
• Mounting type Surface
• Mounting location Wall, Pole, Floor, Ceiling
• Application environment Outdoor
• Adjustable Yes
• Replaceable light source No

Lifespan

• Lifespan L70/B50 at 25 °C 50000 h 1)
• Lifespan L80/B10 at 25 °C 36000 h 1)
• Lifespan L90/B10 at 25 °C 74 000 h
• Number of switching cycles 100000
