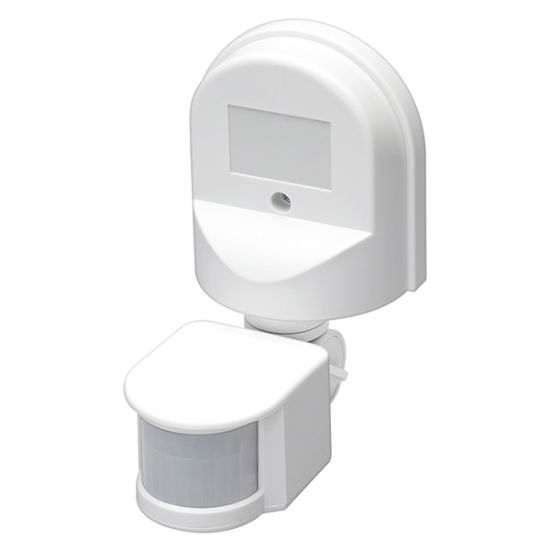

Picture of LEDVANCE LED Value PIR Wall Mounted Motion Sensor 180Deg 220-240V IP44

LEDVANCE LED Value PIR Wall Mounted Motion Sensor 180Deg 220-240V IP44

MS-SV-INF-WS-AD-180-230V-IP44-B LEDV 180° motion sensor - The LEDVANCE LED VALUE PIR Motion Sensor 180° 220–240V IP20 ensures efficient and automatic lighting control indoors. With a 360-degree detection range and energy-saving design, it’s ideal for homes, offices, and hallways, offering convenience and reliability.
Part No: 4058075373051
$180.00 incl tax

LEDVANCE LED VALUE PIR Motion Sensor - Wall Mounted MS-SV INF-WS-AD-180 220-240V IP44 B

Areas of application

  • Suitable for indoor and sheltered outdoor areas
  • Offices
  • Corridors
  • Stairways
  • Residential interiors
  • Commercial buildings

Product features

  • 180° motion sensor (passive infrared technology)
  • Wall surface mounting
  • Timer function
  • Adjustable illuminance from 10 lx to 2000 lx via dip switch
  • Photocell detector available for daylight detection
  • Input voltage: 220…240 VAC
  • Operating frequency: 50/60 Hz
  • Ambient temperature in operation: -20…+45 °C

Electrical data

  • Nominal voltage 220…240 V
  • Mains frequency 50…60 Hz

Dimensions & Weight

  • Length 86.50 mm
  • Width 86.50 mm
  • Height 155.50 mm
  • Product weight 173.1 g

Colors & materials

  • Product color White

Temperatures & operating conditions

  • Ambient temperature range -20…+45 °C

Capabilities

  • Dimmable No
  • Maximum installation height 1.8…2.5 m
  • Detection area 12 m 1)
  • Detection angle 180 °
  • 1) Maximum diameter

Certificates & Standards

  • Protection class II
  • Type of protection IP44
