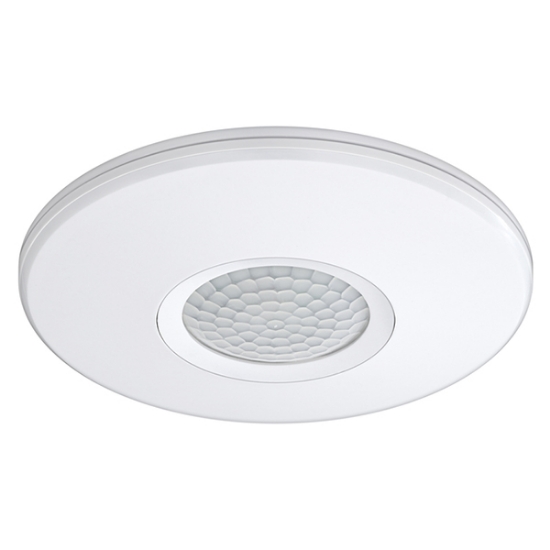

Picture of LEDVANCE LED Value PIR and Microwave Sensor Surface Mounted MS-SV-INF-CS-F 360Deg 220-240V IP20

LEDVANCE LED Value PIR and Microwave Sensor Surface Mounted MS-SV-INF-CS-F 360Deg 220-240V IP20

MS-SV-INF-CS-F-360-230V-IP20 LEDV 360° motion sensor - The LEDVANCE LED VALUE PIR Motion Sensor 360° 220–240V IP20 ensures efficient and automatic lighting control indoors. With a 360-degree detection range and energy-saving design, it’s ideal for homes, offices, and hallways, offering convenience and reliability.
Part No: 4058075372979
$180.00 incl tax

LEDVANCE LED Value PIR and Microwave Sensor Surface Mounted MS-SV-INF-CS-F 360Deg 220-240V IP20

Areas of application

  • Suitable for indoor applications.
  • Offices
  • Corridors
  • Stairways
  • Residential interiors
  • Commercial buildings

Product features

  • 360° motion sensor (passive infrared technology)
  • Ceiling surface and recessed mounting
  • Timer function
  • Adjustable illuminance from 3 or 10 lx to 2000 lx via knob switch (model dependent)
  • Photocell detector available for daylight detection
  • Input voltage: 220…240 VAC
  • Operating frequency: 50/60 Hz
  • Ambient temperature in operation: -20…+40 °C
  • Type of protection: IP20

Electrical data

  • Nominal voltage 220…240 V
  • Type of current AC
  • Mains frequency 50…60 Hz
  • Surge capability (L-N) 1 kV

Dimensions & Weight

  • Length 120.00 mm
  • Width 29.00 mm
  • Height 5.00 mm
  • Product weight 90.00 g

Colors & materials

  • Product color White

Temperatures & operating conditions

  • Ambient temperature range -20…+45 °C

Capabilities

  • Dimmable No
  • Maximum installation height 2.2…4 m
  • Detection area 2…6 m 1)
  • Detection angle 360 °
  • 1) Maximum diameter

Certificates & Standards

  • Protection class II
  • Type of protection IP20
