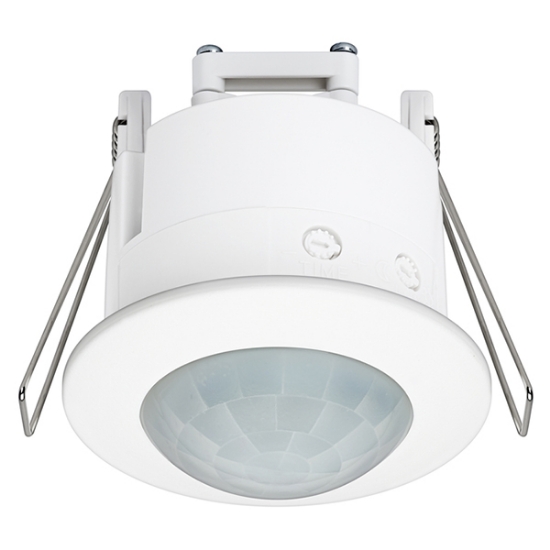

Picture of LEDVANCE LED Value PIR & Microwave Sensor Recessed MS-SV-MIC-CR 360Deg 230V IP20 Non Dimmable

LEDVANCE LED Value PIR & Microwave Sensor Recessed MS-SV-MIC-CR 360Deg 230V IP20 Non Dimmable

MS-SV-MIC-CR-360-230V-IP20 LEDV 360° motion sensor - The LEDVANCE LED Value Microwave Motion Sensor 360° 220–240V IP20 provides precise and reliable motion detection for indoor lighting automation. Featuring a wide 360-degree range and energy-saving operation, it’s perfect for offices, corridors, and residential spaces.
Part No: 4058075373099
$200.00 incl tax

LEDVANCE LED Value PIR & Microwave Sensor Recessed MS-SV-MIC-CR 360Deg 230V IP20 Non Dimmable

Areas of application

  • Suitable for indoor applications.
  • Offices
  • Corridors
  • Stairways
  • Residential interiors
  • Commercial buildings

Product features

  • 360° motion sensor (microwave technology)
  • Ceiling surface and recessed mounting
  • Timer function
  • Adjustable illuminance from 3 or 10 lx to 2000 lx via knob switch (model dependent)
  • Photocell detector available for daylight detection
  • Operating frequency: 50/60 Hz
  • Ambient temperature in operation: -35…+50 °C
  • Type of protection: IP20

Electrical data

  • Nominal voltage 220…240 V
  • Type of current AC
  • Mains frequency 50…60 Hz

Dimensions & Weight

  • Length 80.00 mm
  • Width 61.50 mm
  • Height 76.00 mm
  • Product weight 90.5 g

Colors & materials

  • Product color White

Temperatures & operating conditions

  • Ambient temperature range -35…+50 °C

Capabilities

  • Dimmable No
  • Maximum installation height 1.5…4 m
  • Detection area 8 m 1)
  • Detection angle 360 °
  • 1) Maximum diameter

Certificates & Standards

  • Protection class II
  • Type of protection IP20
