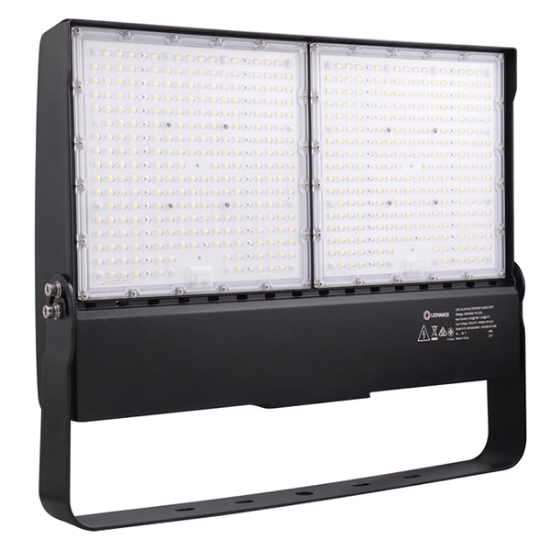

Picture of LEDVANCE LED Value Multipower Floodlight 500W 6500K 120x90Deg IP66
Picture of LEDVANCE LED Value Multipower Floodlight 500W 6500K 120x90Deg IP66
Picture of LEDVANCE LED Value Multipower Floodlight 500W 6500K 120x90Deg IP66
Picture of LEDVANCE LED Value Multipower Floodlight 500W 6500K 120x90Deg IP66

LEDVANCE LED Value Multipower Floodlight 500W 6500K 120x90Deg IP66

LDV FL 330/420/500W 120X90D865 WV VS1 LEDV - The LEDVANCE LED Multipower Floodlight 300W delivers powerful, energy-efficient illumination for large outdoor areas. With adjustable power settings and robust weatherproof design, it’s perfect for sports grounds, building facades, and security lighting. Durable, bright, and built for long-lasting performance.
Part No: 4099854117749
Old price: $765.00 incl tax
$700.00 incl tax

LEDVANCE LED Value Multipower Floodlight 500W 6500K 120x90Deg IP66

Product benefits

  • Low maintenance costs thanks to long lifetime 50,000 hrs @ 35 ℃
  • Energy savings thanks to system efficacy of up to 150 lm/W

Areas of application

  • Sports grounds and outdoor facilities
  • Area lighting
  • Public areas

Product features

  • Input voltage: 100 - 277V AC
  • Available with selectable wattage: 210 W/250 W/300 W in 300 W version
  • Available with selectable wattage: 330 W/420 W/500 W in 500 W version
  • Standard CCT: 6500 K and 4000 K
  • Color rendering index Ra: ≥ 80
  • Power factor: ≥ 0.9
  • Lifetime up to 50,000 h
  • Type of protection: IP66
  • Impact resistance: IK08

Electrical data

  • Nominal wattage 500.00 W
  • Nominal voltage 100…277 V
  • Mains frequency 50…60 Hz
  • Nominal current 1.96…5 A
  • Inrush current time Th50 1200 µs
  • Max. number of luminaires per miniature circuit breaker B16 4
  • Max. number of luminaires per miniature circuit breaker C16 5
  • Power factor λ > 0.90
  • Total harmonic distortion < 20 %
  • Protection class I
  • Operating mode Integrated LED driver

Photometrical data

  • Luminous flux 72000 lm
  • Luminous efficacy 144 lm/W
  • Color temperature 6500 K
  • Light color (designation) Daylight
  • Color rendering index Ra ≥80
  • Standard deviation of color matching < 5 sdcm
  • Photobiological safety group acc. to EN62778 RG1
  • Beam angle 120 ° x 90 °

Dimensions & Weight

  • Length 578.00 mm
  • Height 105.00 mm
  • Width 473.00 mm
  • Product weight 9600.00 g
  • Cable length 500 mm

Materials & Colors

  • Product color Black
  • Housing color Black
  • Body material Aluminum
  • Light emitting surface material Polycarbonate (PC)
  • Glow Wire Test according to IEC 60695-2-12 750 °C
  • Mercury content 0.0 mg

Application & Mounting

  • Ambient temperature range -30…+50 °C
  • Type of connection Cable, 3-pole
  • Type of protection IP66
  • Protection class IK (shock resistance) IK08
  • Dimmable No
  • Mounting type Surface
  • Mounting location Wall, Pole
  • Mounting width 300 mm
  • Adjustable Yes
  • Replaceable light source No

Lifespan

  • Lifespan L70/B50 at 25 °C 50000 h 1)
  • Number of switching cycles 30000
