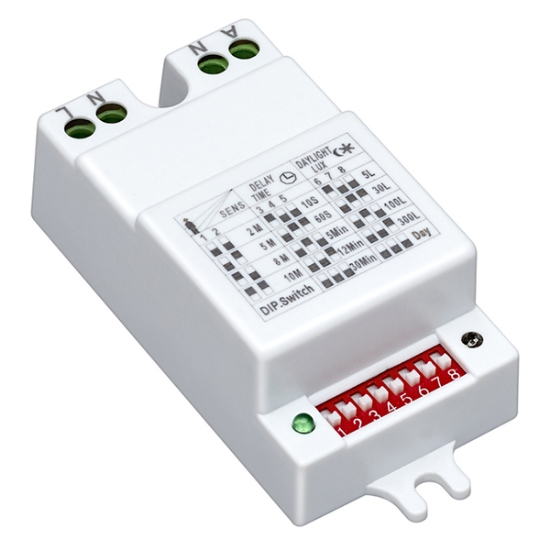

Picture of LEDVANCE LED Value Microwave Sensor Component for Luminaires 360Deg 220-240V IP20

LEDVANCE LED Value Microwave Sensor Component for Luminaires 360Deg 220-240V IP20

Upgrade your luminaires with the LEDVANCE MS-SV MIC-IL 360 Microwave Sensor. This internal 220-240V component features 360° motion detection, an adjustable daylight photocell (10-2000 lx), and a smart timer. Ideal for automating indoor lighting in offices, corridors, and residential spaces.
Part No: 4058075373136
$190.00 incl tax

LEDVANCE 360° Microwave Motion Sensor Component (IP20)

The LEDVANCE LED Value Microwave Sensor is a professional-grade internal component designed for seamless integration into indoor luminaires. Unlike standard PIR sensors, this microwave-based detector provides superior 360-degree coverage and can detect motion through thin walls, glass, and furniture, ensuring no blind spots in automated environments.

Key Features & Professional Benefits:

  • Advanced Microwave Technology: Provides high-sensitivity 360° detection, making it more reliable than traditional infrared sensors in complex indoor layouts.

  • Fully Adjustable Logic: Features internal dip switches for easy commissioning of the daylight threshold (10 lx to 2000 lx) and hold-time (timer function), allowing the luminaire to stay on only when needed.

  • Compact Built-in Design: Small form factor (68mm length) allows it to be hidden inside most batten, oyster, and panel luminaire housings, maintaining the clean aesthetic of your fixtures.

  • Energy Efficiency: Drastically reduces electricity costs by automating lights in low-occupancy areas like stairways, corridors, and storage rooms.

  • Robust Performance: Operating in temperatures from -35°C to +50°C, this sensor is designed for consistent performance in residential and commercial buildings.

Areas of application

  • Suitable for indoor applications.
  • Suitable for built-in luminaries
  • Offices
  • Corridors
  • Stairways
  • Residential interiors
  • Commercial buildings

Product features

  • Up to 360° motion sensor (microwave technology)
  • Timer function
  • Adjustable illuminance from 10 lx to 2000 lx via dip switch
  • Photocell detector available for daylight detection
  • Input voltage: 220…240 VAC
  • Operating frequency: 50/60 Hz
  • Ambient temperature in operation: -35…+50 °C

Electrical data

  • Nominal voltage 220…240 V
  • Type of current AC
  • Mains frequency 50…60 Hz
  • Surge capability (L-N) 1 kV

Dimensions & Weight

  • Length 68.00 mm
  • Width 36.00 mm
  • Height 25.00 mm
  • Product weight 45.3 g

Colors & materials

  • Product color White

Temperatures & operating conditions

  • Ambient temperature range -35…+50 °C

Capabilities

  • Dimmable No
  • Maximum installation height 1.5…4 m
  • Detection area 10 m 1)
  • Detection angle 180 °, 360 °
  • 1) Maximum diameter

Certificates & Standards

  • Protection class II
  • Type of protection IP20
