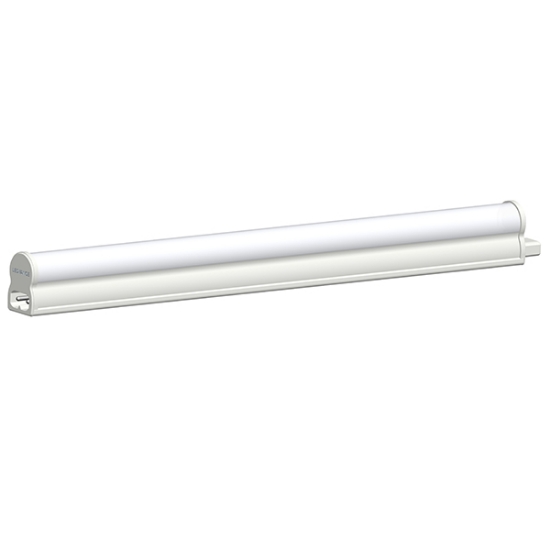

Picture of LEDVANCE 1200mm Linkable LED Value Batten 13W 840 G3

LEDVANCE 1200mm Linkable LED Value Batten 13W 840 G3

The LEDVANCE 1200mm Linkable Value Batten is a high-efficiency 13W fixture providing 1200 lumens of crisp 4000K Cool White light. Featuring a seamless G3 linkable design, it is the perfect low-profile solution for cove lighting, shelving, and under-cabinet applications.
Part No: 4099854115059
$150.00 incl tax

LEDVANCE 1200mm Linkable LED Value Batten (13W, 4000K)

The LEDVANCE Value Linkable Batten G3 is an ultra-slim, indoor linear luminaire designed for maximum versatility and ease of installation. Its standout feature is the integrated plug-and-play system, allowing multiple units to be connected in a continuous row for long, uniform runs of light without dark spots.

Key Features & Applications:

  • Seamless Linkability: Designed for "end-to-end" connection. You can link multiple 1200mm battens together using the included connectors, making it ideal for long retail aisles, architectural coves, or large workshop benches.

  • Latest G3 Technology: The third generation of this batten offers improved energy efficiency and light consistency, delivering 1200lm output from a low 13W power draw.

  • Neutral 4000K Light: The Cool White colour temperature provides a clean, professional look that enhances task visibility in kitchens, laundries, and offices.

  • Ultra-Slim Profile: Its compact, low-profile housing allows for discreet installation behind pelmets, under cabinets, or inside wardrobes where space is limited.

  • Complete Kit: Comes ready for installation with a power cord, connecting cables, and mounting clips for a hassle-free surface-mount setup.

  • Uniform Illumination: High-quality opal diffuser ensures smooth, glare-free light distribution across the entire length of the fixture.

Product benefits

  • Value for money luminaire
  • Mercury-free technology
  • Accessories for flexible mounting options included

Areas of application

  • Offices
  • Residential interiors
  • Hotels, restaurants, shops

Product features

  • Protection class: II
  • Color rendering index Ra: ≥ 80
  • Type of protection: IP20
  • Lifetime up to 15,000 h

Electrical Data

  • Nominal wattage 13.00 W
  • Nominal voltage 220…240 V
  • Mains frequency 50…60 Hz
  • Power factor λ > 0.5
  • Protection class II

Photometrical data

  • Luminous flux 1300 lm
  • Luminous efficacy 100 lm/W
  • Color temperature 4000 K
  • Light color (designation) Cool White
  • Color rendering index Ra > 80
  • Standard deviation of color matching < 6 sdcm
  • Beam angle 100 °

Dimensions and Weight

  • Length 1185.00 mm
  • Height 31.00 mm
  • Width 20.00 mm
  • Product weight 230.00 g

Materials and Colors

  • Product color White
  • Housing color White
  • Body material Plastic

Application and Mounting

  • Ambient temperature range -10…+40 °C
  • Type of protection IP20
  • Dimmable No
  • Mounting type Surface
  • Mounting location Ceiling, Wall
  • Application environment Indoor
  • Replaceable light source No
