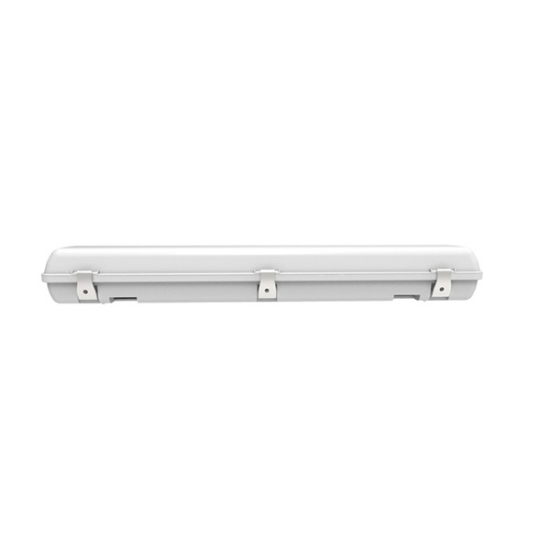

Picture of LEDVANCE 600mm Weatherproof Batten LED Tri Colour 10W-20W

LEDVANCE 600mm Weatherproof Batten LED Tri Colour 10W-20W

The LEDVANCE 600mm Weatherproof Batten is an ultra-flexible IP65 fixture featuring selectable wattage (10W-20W) and Tri-Colour CCT (3000K/4000K/6500K). With a high-impact IK08 rating and stainless steel clips, it is the perfect durable solution for corridors, small storerooms, and utility areas.
Part No: 4099854212574
$185.00 incl tax

LEDVANCE 600mm Multi-Wattage Tri-Colour Weatherproof Batten

The LEDVANCE Tri-Colour Multi-Wattage Weatherproof Batten offers electrical contractors and facility managers the ultimate in installation flexibility. Designed to replace legacy 2-foot fluorescent fittings, this batten allows for the customization of both light intensity and colour temperature on-site to suit the specific environment.

Key Features for Professional Trade Use:

  • Selectable Wattage & Colour: Features internal switches to toggle between 10W, 13W, 15W, or 20W power levels and 3000K, 4000K, or 6500K colour temperatures. This reduces the need to stock multiple SKU types for different site requirements.

  • Rugged Industrial Build: Rated IP65 for complete moisture and dust protection and IK08 for high impact resistance. The robust polycarbonate body and high-grade stainless steel clips prevent corrosion and ensure long-term performance.

  • High Efficiency: Delivering up to 120 lumens per watt, this batten provides crisp, bright light while significantly reducing energy overheads compared to old T8 fluorescent tubes.

  • Long-Life Reliability: Designed for a 50,000-hour service life, minimizing maintenance costs in hard-to-reach locations like plant rooms and stairwells.

  • Fast Installation: Includes large terminal blocks for easy wiring and stainless steel mounting brackets for quick surface-mount installation.

Product benefits

  • Available in 3 length options: 600 mm, 1200 mm, 1500 mm
  • TRI CCT (3000K/4000K/6500K)
  • Beam angle: 120°
  • High luminous efficacy: up to 120 lm/W
  • Type of protection: IP65
  • Impact resistance: IK08
  • Polycarbonate housing
  • Lifetime up to 50,000 h

Areas of application

  • Car parks
  • Storage rooms
  • Outdoor applications
  • Passages, underpasses
  • Workshops, assembly lines

Product features

  • Protection class: II
  • Color rendering index Ra: ≥ 80
  • Type of protection: IP20
  • Lifetime up to 15,000 h

Electrical Data

  • Nominal wattage 20.00 W
  • Nominal voltage 220…240 V
  • Mains frequency 50…60 Hz

Photometrical data

  • Luminous efficacy 110 lm/W
  • Light color (designation) Warm White, Cool White, Cool Daylight
  • Color rendering index Ra 80

Dimensions and Weight

  • Length 655.00 mm
  • Height 86.00 mm
  • Width 115.00 mm
  • Product weight 1105.00 g

Materials and Colors

  • Product color Gray
  • Housing color Gray
  • Body material Polycarbonate (PC)
  • Mercury content 0.0 mg

Application and Mounting

  • Type of protection IP65
  • Dimmable No
  • Mounting type Surface
  • Replaceable light source No
