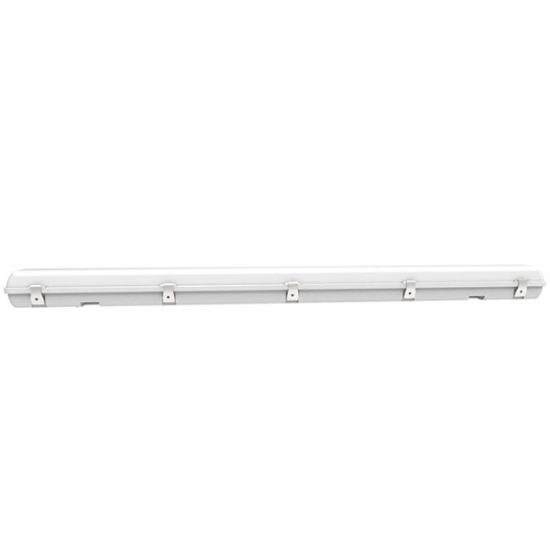

LEDVANCE 1200mm Multi-Wattage CCT Weatherproof Batten
The ultimate all-in-one 1200mm LED batten. This LEDVANCE IP65 weatherproof fixture features selectable wattage (24W-42W), Tri-Colour CCT selection, and integrated Emergency (EM). Perfect for car parks, warehouses, and commercial corridors.
LEDVANCE 1200mm Multi-Wattage Tri-Colour Weatherproof Batten (EM)
The LEDVANCE Tri-Colour Multi-Wattage Weatherproof Batten is a highly versatile, high-specification luminaire designed to replace traditional twin fluorescent fittings in demanding environments. This model is the ultimate all-in-one solution, integrating both safety emergency lighting and energy-efficient motion sensing.
Key Features & Professional Benefits:
Unmatched Flexibility: Features both a Wattage Switch (choose from 24W, 30W, 36W, or 42W) and a Tri-Colour Switch (select 3000K, 4000K, or 6500K). This single SKU covers almost any lighting requirement, reducing stock complexity.
Integrated Emergency Module (EM): Equipped with a long-life LiFePO4 battery, providing reliable emergency illumination during power failures. Fully compliant with AS/NZS 2293 standards.
- Extreme Durability: Rated IP65 for full weather protection and IK08 for high impact resistance. The robust polycarbonate housing and stainless steel clips ensure a long 50,000-hour service life in harsh industrial conditions.
High Efficiency: Delivers up to 120 lumens per watt (lm/W), ensuring powerful light output with minimal electricity consumption.
Fast Installation: Designed with the installer in mind, featuring large terminal blocks and stainless steel mounting brackets for a quick, secure fit.
Product benefits
- Available in 3 length options: 600 mm, 1200 mm, 1500 mm
- TRI CCT (3000K/4000K/6500K)
- Beam angle: 120°
- High luminous efficacy: up to 120 lm/W
- Type of protection: IP65
- Impact resistance: IK08
- Polycarbonate housing
- Lifetime up to 50,000 h
Areas of application
- Car parks
- Storage rooms
- Outdoor applications
- Passages, underpasses
- Workshops, assembly lines
Product features
- Protection class: II
- Color rendering index Ra: ≥ 80
- Type of protection: IP20
- Lifetime up to 15,000 h
Electrical Data
- Nominal wattage 42.00 W
- Nominal voltage 220…240 V
- Mains frequency 50…60 Hz
Photometrical data
- Luminous efficacy 110 lm/W
- Light color (designation) Warm White, Cool White, Cool Daylight
- Color rendering index Ra 80
Dimensions and Weight
- Length 1265.00 mm
- Height 86.00 mm
- Width 115.00 mm
- Product weight 2245.00 g
Materials and Colors
- Product color Gray
- Housing color Gray
- Body material Polycarbonate (PC)
- Mercury content 0.0 mg
Application and Mounting
- Type of protection IP65
- Dimmable No
- Mounting type Surface
- Replaceable light source No
