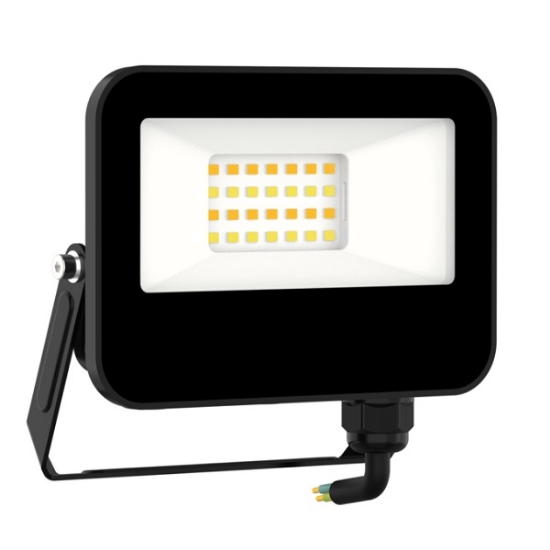

LEDVANCE Multi-Wattage 6W/8W/10W LED Floodlight

LEDVANCE Multi-Wattage 6/8/10W Tri-Colour IP65 LED Floodlight

The LEDVANCE 10W Multi-Wattage Floodlight is a game-changer for electricians and homeowners alike. By combining three power settings and three colour temperatures into one compact fixture, it provides 9 distinct lighting profiles, ensuring you have the exact light level and atmosphere for every area of your property.

Key Features for Versatile Outdoor Lighting:

• Customizable Output: A built-in switch allows you to toggle between 6W, 8W, or 10W power levels. At the maximum 10W setting, it provides a bright 1400 lumens, ideal for security or task visibility.

• Tri-Colour Selectable (3CCT): Choose between 3000K (Warm White) for ambient garden lighting, 4000K (Cool White) for general pathways, or 6500K (Daylight) for high-visibility security.

• Marine-Grade Durability: Built to last in harsh environments, this fixture features a specialized coating tested for 800 hours of salt spray, making it the superior choice for coastal homes and humid areas.

• Weatherproof & Safe: Rated IP65 for full protection against dust and water jets, with an IK06 impact rating and 1KV surge protection to ensure a long 50,000-hour service life.

• Eco-Friendly Efficiency: Achieving a high efficacy of 140lm/W, this floodlight provides superior brightness with minimal electricity consumption.

• Compact Design: The slim profile and adjustable bracket allow for easy mounting on eaves, walls, or under gutters.

Installation Note: Desired Wattage and CCT settings are adjusted via internal dip switches prior to final wiring and mounting.

Areas of application

• Public areas
• Outdoor applications
• Gardens
• Pathway lighting
• Storage rooms
• Garages

Product features

• TRI CCT (3000K/4000K/6500K)
• High luminous efficacy: up to 140 lm/W
• Type of protection: IP65
• Impact resistance: IK06
• Surge protection: up to 1 KV
• Aluminium housing
• Pre-wired with mains cable
• Marine grade coating of 800-hour salt spray test
• Lifetime up to 50,000 h

Electrical Data

• Nominal wattage 6W / 8W / 10W
• Nominal voltage 110…277 V
• Mains frequency 50…60 Hz
• Power factor λ > 0.90

Photometrical data

• Luminous flux 840 lm / 1100 lm / 1400 lm
• Luminous efficacy 140 lm/W
• Color temperature 3000 K / 4500 K / 6500 K
• Light color (designation) Warm White, Cool White, Cool Daylight
• Color rendering index Ra > 80
• Standard deviation of color matching ≤5 sdcm
• Beam angle 110 °

Dimensions and Weight

• Length 135.00 mm
• Height 30.00 mm
• Width 110.00 mm
• Product weight 415.00 g

Materials and Colors

• Product color Black
• Cover material Glass

Application and Mounting

• Ambient temperature range -30…+50 °C
• Type of protection IP65
• Dimmable No
• Mounting type Recessed
• Replaceable light source No

Lifespan

• Lifespan L70/B50 at 25 °C: 50000 h 1)
