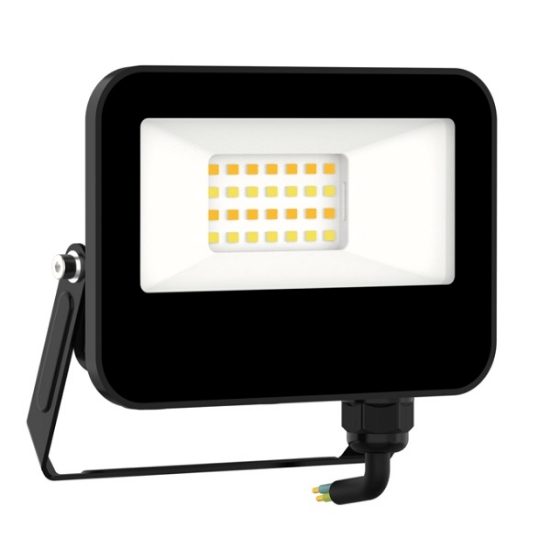

LEDVANCE Multi-Wattage 18W/24W/30W LED Floodlight

LEDVANCE Multi-Wattage 18/24/30W Tri-Colour IP65 LED Floodlight

This LEDVANCE Floodlight is the ideal choice for professional users who require a high degree of flexibility and power for various external lighting duties. By providing selectable CCT and Wattage, this single fixture covers a broad range of medium-power outdoor lighting requirements.

Key Features & High Versatility:

• Dual Selectable Technology: Reduces SKU complexity for tradespeople:

  • Multi-Wattage: Easily switch between 18W, 24W, or 30W power consumption for precise light level control. (Max output: 4200 lumens at 30W).

  • Tri-Colour (3CCT): Select the ideal light colour: 3000K (Warm), 4000K (Cool), or 6500K (Daylight) via an internal switch.

• Extreme Durability (IP65/IK06): Fully weatherproof against dust and water jets, with an IK06 impact rating. Crucially, it includes an 800-hour salt spray test (Marine Grade) certification, ensuring longevity in coastal and humid environments.

• High Efficiency: Achieves up to 140 lumens per watt (lm/W), leading to superior energy savings over its long 50,000-hour lifespan.

• Robust Construction: Features a durable Aluminium housing with high surge protection (up to 2 KV).

• Applications: Perfect for industrial yard lighting, public area illumination, medium-height building facades, and large pathway lighting.

Installation Note: Both the CCT and Wattage settings are selected via internal dip switches prior to mounting and connection.

Areas of application

• Public areas
• Outdoor applications
• Gardens
• Pathway lighting
• Storage rooms
• Garages

Product features

• TRI CCT (3000K/4000K/6500K)
• High luminous efficacy: up to 140 lm/W
• Type of protection: IP65
• Impact resistance: IK06
• Surge protection: up to 1 KV
• Aluminium housing
• Pre-wired with mains cable
• Marine grade coating of 800-hour salt spray test
• Lifetime up to 50,000 h

Electrical Data

• Nominal wattage 18W / 24W / 30W
• Nominal voltage 110…277 V
• Mains frequency 50…60 Hz
• Power factor λ > 0.90

Photometrical data

• Luminous flux 2750 lm / 3600 lm / 4200 lm
• Luminous efficacy 140 lm/W
• Color temperature 3000 K / 4500 K / 6500 K
• Light color (designation) Warm White, Cool White, Cool Daylight
• Color rendering index Ra > 80
• Standard deviation of color matching ≤5 sdcm
• Beam angle 110 °

Dimensions and Weight

• Length 160.00 mm
• Height 30.00 mm
• Width 125.00 mm
• Product weight 540.00 g

Materials and Colors

• Product color Black
• Cover material Glass

Application and Mounting

• Ambient temperature range -30…+50 °C
• Type of protection IP65
• Dimmable No
• Mounting type Recessed
• Replaceable light source No

Lifespan

• Lifespan L70/B50 at 25 °C: 50000 h 1)
