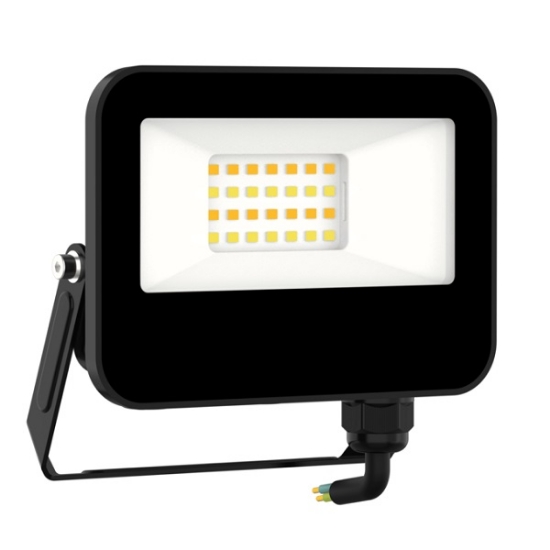

LEDVANCE Multi-Wattage 12W/16W/20W LED Floodlight

LEDVANCE Multi-Wattage 12/16/20W Tri-Colour IP65 LED Floodlight

This LEDVANCE Floodlight offers contractors and property managers maximum flexibility and high performance in a single, robust fixture. It is ideal for installations where the light requirements may vary (gardens, pathways, carports, security) as both the power and colour can be customized on-site.

Key Features & Ultimate Flexibility:

• Dual Selectable Technology (9 Options in 1): Eliminates the need to stock multiple models:

  • Multi-Wattage: Easily switch between 12W, 16W, or 20W power consumption. (Max output: 2800 lumens at 20W).

  • Tri-Colour (3CCT): Select the ideal light colour: 3000K (Warm), 4000K (Cool), or 6500K (Daylight) via an internal switch.

• Extreme Durability (IP65/IK06): The high IP65 rating provides protection against water and dust, while the IK06 rating guards against impact. Includes an 800-hour salt spray test (Marine Grade) certification, making it safe for coastal and humid environments.

• High Efficiency: Achieves up to 140 lumens per watt (lm/W), significantly reducing running costs over its 50,000-hour lifespan.

• Robust Construction: Features a durable Aluminium housing with high surge protection (up to 1 KV).

• Applications: Perfect for public areas, residential security, garages, storage rooms, and pathway lighting.

Installation Note: Both the CCT and Wattage settings are selected via internal dip switches prior to wiring and mounting.

Areas of application

• Public areas
• Outdoor applications
• Gardens
• Pathway lighting
• Storage rooms
• Garages

Product features

• TRI CCT (3000K/4000K/6500K)
• High luminous efficacy: up to 140 lm/W
• Type of protection: IP65
• Impact resistance: IK06
• Surge protection: up to 1 KV
• Aluminium housing
• Pre-wired with mains cable
• Marine grade coating of 800-hour salt spray test
• Lifetime up to 50,000 h

Electrical Data

• Nominal wattage 12W / 16W / 20W
• Nominal voltage 110…277 V
• Mains frequency 50…60 Hz
• Power factor λ > 0.90

Photometrical data

• Luminous flux 1800 lm / 2300 lm / 2800 lm
• Luminous efficacy 140 lm/W
• Color temperature 3000 K / 4500 K / 6500 K
• Light color (designation) Warm White, Cool White, Cool Daylight
• Color rendering index Ra > 80
• Standard deviation of color matching ≤5 sdcm
• Beam angle 110 °

Dimensions and Weight

• Length 135.00 mm
• Height 30.00 mm
• Width 110.00 mm
• Product weight 417.00 g

Materials and Colors

• Product color Black
• Cover material Glass

Application and Mounting

• Ambient temperature range -30…+50 °C
• Type of protection IP65
• Dimmable No
• Mounting type Recessed
• Replaceable light source No

Lifespan

• Lifespan L70/B50 at 25 °C: 50000 h 1)
