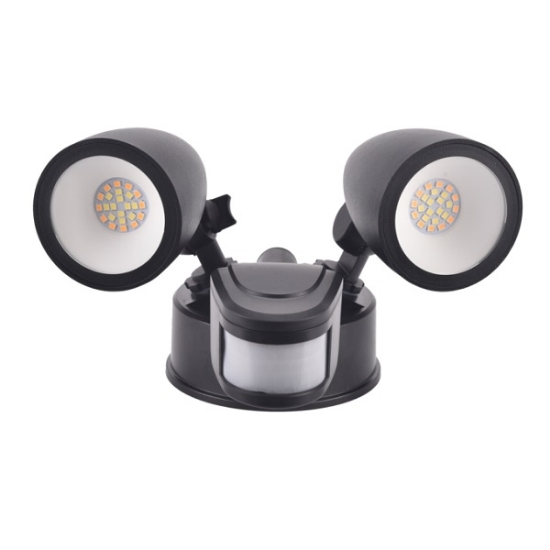

LEDVANCE 2x10W (20W) Twin Head Tri-Colour LED Floodlight with Motion Sensor (MS)

LEDVANCE 2x10W (20W) Twin Head Tri-Colour IP65 LED Floodlight with Motion Sensor (MS)

This LEDVANCE Twin Head Floodlight is the ultimate solution for demanding exterior security lighting. It combines high-power, flexibility, and automated switching in a single, durable IP65-rated fixture, making it perfect for large driveways, commercial building perimeters, and high-traffic areas.

Key Features & Smart Performance:

• Integrated Motion Sensor (MS): The built-in PIR sensor provides reliable, automated switching, maximizing energy savings by ensuring the light is only active when movement is detected. Sensor parameters (time, lux, sensitivity) are fully adjustable.

• Dual Adjustable Heads: Two separate 10W heads can be independently rotated and tilted, offering versatile light aiming to cover wide areas, corners, and two distinct directions simultaneously.

• High Output: Combined 20W power delivers a total of 1800–2000 lumens, providing bright, reliable illumination.

• Tri-Colour Selectable (3CCT): A simple internal dip switch allows the installer to select the CCT on-site, offering choice between Warm White (3000K), Cool White (4000K), or Daylight (6500K) to suit the environment.

• Extreme Durability (IP65): Guarantees protection against dust and high-pressure water jets for reliable long-term performance in all Australian weather conditions.

• Energy Efficiency: Delivers powerful output with minimal running costs, ensuring a fast return on investment.

Product benefits

• Available in TRI CCT as a single or double adjustable head
• Motion sensor versions available, providing additional security and safety
• Large terminal block for simple installation

Areas of application

• Outdoor use (IP65)
• Building facades

Product features

• Type of protection: IP65
• TRI colour 3000K, 4000K and 6500K via dip switch
• High luminous efficacy: up to 100 lm/W
• Ambient temperature in operation: -20…+50 °C
• Long lifetime: up to 30,000 h
• 5 years warranty

Electrical Data

• Nominal wattage: 2x10 W
• Nominal voltage: 220…240 V
• Power factor λ: > 0.5

Photometrical data

• Luminous flux: 1800 … 2000 lm
• Luminous efficacy 900 lm/W
• Color temperature: 3000 K / 4000 K / 6500 K
• Light color (designation): Warm White, Cool White, Cool Daylight
• Color rendering index Ra: ≥80
• Standard deviation of color matching: < 6 sdcm
• Beam angle: 100 °

Dimensions and Weight

• Length: 290.00 mm
• Height: 170.00 mm
• Width: 132.00 mm
• Product weight: 700.00 g

Materials and Colors

• Product color: Black
• Housing color: Black
• Body material: Aluminum
• Cover material: Polycarbonate (PC)

Application and Mounting

• Ambient temperature range: -20…+50 °C
• Type of connection: Screw terminal, 3-Pole
• Type of protection: IP54
• Dimmable: No
• Mounting type: Surface
• Mounting location: Ceiling, Wall
• Replaceable light source: No

Lifespan

• Lifespan L70/B50 at 25 °C: 30000 h 1)
• Lifespan L80/B10 at 25 °C: 30000 h 1)
