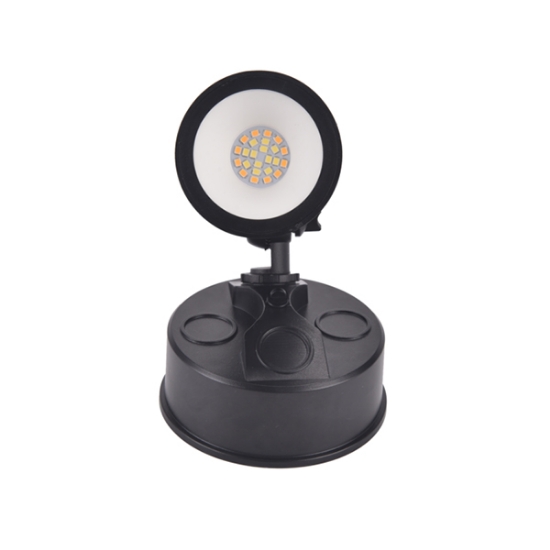

LEDVANCE LED Security Floodlights 10W Tri Colour
The LEDVANCE 10W Tri-Colour LED Floodlight offers 950 lumens and a selectable colour temperature (3000K/4000K/6500K). The IP65 weatherproof, die-cast aluminium housing is ideal for cost-effective security lighting on residential and commercial building facades.
LEDVANCE 10W Tri-Colour IP65 LED Security Floodlight (Black)
This LEDVANCE 10W Tri-Colour Floodlight provides exceptional value and lighting flexibility for multi-unit dwellings, commercial complexes, and large residential projects. Each fixture offers reliable, energy-efficient security and accent lighting.
Key Features & Trade Benefits:
- Tri-Colour Selectable (3CCT): An internal dip switch allows selection of the CCT on-site, providing flexibility to match existing lighting or meet specific customer preferences (Warm White, Cool White, or Daylight).
Superior Weatherproofing (IP65): The high IP65 rating ensures complete protection against dust and high-pressure water jets, making it suitable for all external conditions, including building facades and gardens.
Durable Construction: Built with a robust die-cast aluminium body for excellent heat dissipation and a long operational lifespan (30,000 hours).
Energy Efficiency: Provides up to 950 lumens of bright light using only 10W, offering substantial energy savings compared to traditional halogen fittings.
Installation Note: The Tri-Colour setting is selected via a dip switch located inside the fitting prior to final installation.
Product benefits
- Available in TRI CCT as a single or double adjustable head
- Motion sensor versions available, providing additional security and safety
- Large terminal block for simple installation
Areas of application
- Outdoor use (IP65)
- Building facades
Product features
- Type of protection: IP65
- TRI colour: 3000K, 4000K and 6500K via dip switch
- High luminous efficacy: up to 100 lm/W
- Ambient temperature in operation: -20…+50 °C
- Long lifetime: up to 30,000 h
- 5 years warranty
Electrical Data
- Nominal voltage: 220…240 V
- Power factor: λ > 0.5
Photometrical data
- Luminous flux: 900 … 950 lm
- Color temperature: 3000 K / 4000 K / 6500 K
- Light color (designation): Warm White, Cool White, Cool Daylight
- Color rendering index Ra: ≥80
- Standard deviation of color matching: < 6 sdcm
- Beam angle: 100 °
Dimensions and Weight
- Length: 183.00 mm
- Height: 114.00 mm
- Width: 144.00 mm
- Product weight: 400.00 g
Materials and Colors
- Product color: Black
- Housing color: Black
- Body material: Aluminum
- Cover material: Polycarbonate (PC)
Application and Mounting
- Ambient temperature range: -20…+50 °C
- Type of connection: Screw terminal, 3-Pole
- Type of protection: IP65
- Dimmable: No
- Mounting type: Surface
- Mounting location: Ceiling, Wall
- Replaceable light source: No
Lifespan
- Lifespan L70/B50 at 25 °C: 30000 h 1)
- Lifespan L80/B10 at 25 °C: 30000 h 1)
