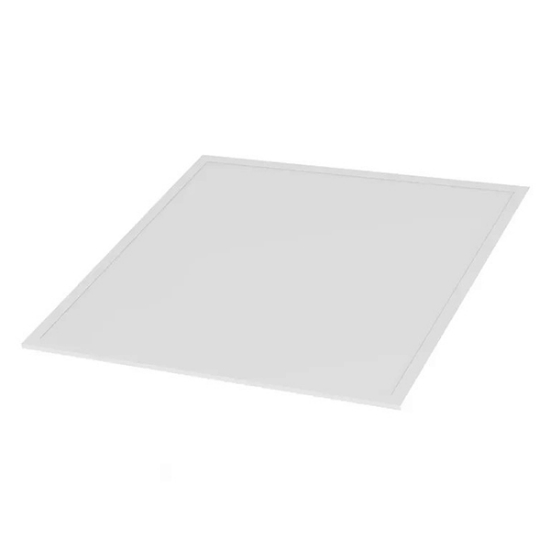

Picture of LEDVANCE LED ECO Panel Single Color 36W Daylight 600mm x 600mm

LEDVANCE LED ECO Panel Single Color 36W Daylight 600mm x 600mm

Bulk Buy 6-Pack: The LEDVANCE 600x600mm ECO LED Panel is a high-efficiency 36W fixture providing 3240 lumens of 6500K Daylight White light. Designed for T-bar drop ceilings, this bulk pack is the perfect value solution for full office, retail, or school lighting projects.
Part No: 4099854245039
$190.00 incl tax

LEDVANCE ECO PANEL 600x600mm 36W 6500K (Daylight)

The provides a reliable, cost-effective, and high-efficiency lighting solution for large commercial fit-outs and refurbishments. This 36W, 600mm x 600mm panel is designed for quick, direct replacement of old fluorescent troffers in standard grid ceilings.

Key Features for Commercial Applications:

  • Standard Size (600x600): Perfect fit for standard ceiling grids, making replacement simple and fast.

  • High Efficiency: Uses only 36W to produce 3240 lumens, achieving high efficacy and significantly reducing operational energy costs.

  • Daylight Colour (6500K): The 6500K CCT (Daylight) provides a very bright, high-clarity white light, which is often preferred in retail displays, schools, hospitals, and technical work environments.

  • Low Glare (UGR<22): The glare rating ensures the panel is suitable for general commercial areas, providing visual comfort for occupants.

  • Easy Installation: Comes pre-wired with a flex and plug for simple, compliant, drop-in installation.

Product benefits

  • Low glare rating of UGR<22
  • 36W, 65W
  • Available in 600x600mm
  • Single color in 6500K

Areas of application

  • Offices, conference rooms
  • Reception areas and foyers
  • Entrances / Hallways
  • Retail
  • Hospitality
  • Libraries, schools

Product features

  • High luminous efficacy: 90 lm/W
  • Type of protection: IP40
  • Pre-wired with flex and plug
  • Lifetime up to 50,000 h
  • Beam angle: 120°

Specifications

  • Nominal wattage 36.00 W
  • Nominal voltage 220…240 V
  • Mains frequency 50…60 Hz
  • Nominal current 200.000 mA
  • Power factor λ > 0.90
  • Protection class II
  • Operating mode External LED driver

Photometrical data

  • Luminous flux 3240 lm
  • Luminous efficacy 90 lm/W
  • Color temperature 6500 K
  • Light color (designation) Daylight
  • Color rendering index Ra 80
  • Standard deviation of color matching ≤5 sdcm
  • Beam angle 120 °
  • UGR < 22

Dimensions and Weight

  • Length 595.00 mm
  • Height 32.00 mm
  • Width 595.00 mm
  • Product weight 1425.00 g

Application & Mounting

  • Ambient temperature range -10…+40 °C
  • Type of protection IP40/IP20
  • Dimmable No
  • Mounting type Recessed/Suspended/Surface
  • Mounting location Ceiling
  • Application environment Indoor
  • Mounting length 595.00 mm
  • Mounting width 595.00 mm
  • Mounting depth 32,0 mm
  • Replaceable light source No

Materials and Colors

  • Product color White
  • Housing color White
  • Body material Steel
  • Mercury content 0.0 mg
