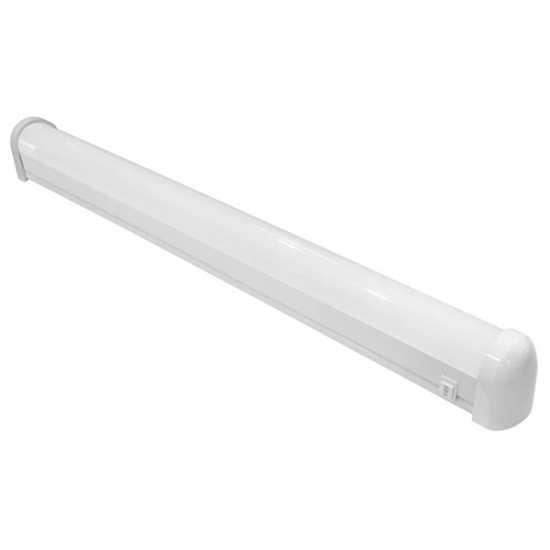

Picture of LEDVANCE 900mm Dual-Select LED Mini Batten

LEDVANCE 900mm Dual-Select LED Mini Batten

The LEDVANCE 900mm Mini Batten is a high-output, IP44-rated light fixture with selectable Wattage (15W or 25W) and selectable Colour Temperature (4000K Neutral or 6500K Daylight). Perfect for larger kitchens, garages, workshops, and damp utility corridors.
Part No: 4099854201837
$150.00 incl tax

LEDVANCE 900mm Dual-Select 15/25W IP44 LED Mini Batten

This LEDVANCE 900mm Mini Batten offers exceptional flexibility and higher light output in a longer, moisture-resistant fixture. It is specifically designed to replace older, less-efficient fluorescent fittings in areas that require protection from moisture and dust.

Key Features & Flexibility:

  • Higher Dual Wattage (15W/25W): A built-in switch allows selection between 15W (for efficient general lighting) or a powerful 25W (for high-visibility task lighting) from the same fixture.

  • Dual Colour Selectable (4000K/6500K): Easily switch between a neutral, professional 4000K Cool White (for work areas/garages) or a bright, crisp 6500K Daylight (for high visual acuity), ensuring the perfect light for every application.

  • IP44 Moisture Protection: The rating ensures the luminaire is protected from splashing water and dampness, making it safe for internal wet areas and sheltered outdoor spaces.

  • Efficient & Long-Lasting: Integrated LED technology provides instant light, superior energy savings, and a long lifespan, minimizing maintenance effort in commercial settings.

  • Ideal for Replacements: Its linear profile makes it a perfect, low-profile alternative to older 3-foot T8 or T5 fluorescent battens.

Product benefits

  • Dual colour in 4000K and 6500K

Areas of application

  • Kitchens
  • Bathrooms
  • Bedrooms
  • Reception areas and foyers
  • Corridors, stairways, entrance areas

Product features

  • Available in two wattage options: 10-15W and 15-20W
  • Available in 600mm and 900mm
  • High luminous efficacy: up to 110 lm/W
  • Beam angle: 120°
  • Type of protection: IP44
  • Impact resistance: IK05
  • Lifetime up to 25,000 h

Electrical Data

  • Nominal wattage 20.00 W
  • Nominal voltage 220…240 V
  • Mains frequency 50…60 Hz
  • Power factor λ ≥ 0.07

Photometrical data

  • Luminous flux 2000 lm
  • Total luminous flux of contained light sources 2000 lm
  • Luminous efficacy 100 lm/W
  • Color temperature 4000…6500 K
  • Light color (designation) Cool White, Cool Daylight
  • Color rendering index Ra ≥80
  • Standard deviation of color matching < 6 sdcm
  • Beam angle 120 °

Dimensions and Weight

  • Length 896.00 mm
  • Height 71.00 mm
  • Width 61.00 mm
  • Product weight 532.00 g

Materials and Colors

  • Product color White
  • Housing color White
  • Body material Polycarbonate (PC)
  • Cover material Polycarbonate (PC)

Application and Mounting

  • Ambient temperature range -20…+40 °C
  • Type of protection IP44
  • Dimmable No
  • Mounting type Surface
  • Mounting location Ceiling, Wall
  • Replaceable light source No
