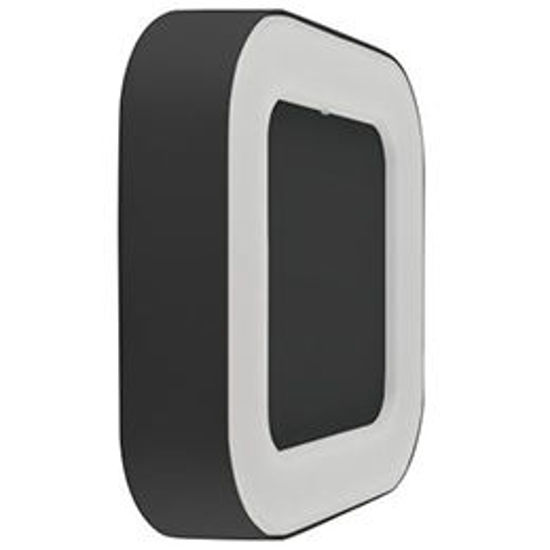

LEDVANCE LED 13W 3000K IP54 Square Outdoor Surface (Gray/White)

*
$156.00 incl tax

- LEDVANCE LED 13W 3000K IP54 Square Outdoor Surface (Gray/White)
- Wall and ceiling luminaires with modern design in square shape
- Available in Gray and White colours

Product benefits
- Energy-efficient thanks to LED technology
- 5 years guarantee
- Easy and quick installation
- Homogeneous light output

Areas of application
- Outdoor
- Building facades
- Gardens, balconies and other outdoor areas

Product features
- Bright and functional outdoor LED luminaires
- Type of protection: IP54
- Die-cast aluminum housing
- Available in two housing colors: white and dark gray
- Diffuser made of opal polycarbonate

Equipment / Accessories
- Complete mounting and connecting accessories included

Electrical data
Operating modeMains voltage
Mains frequency50/60 Hz
Power factor λ>0.5
Nominal wattage13.00 W
Nominal voltage220…240 V
Nominal current0.063 A
Max. no. of lum. on circuit break. B16 A75
Max. no. of lum. on circuit break. C10 A96
Max. no. of lum. on circuit break. C16 A60
Photometrical data
Color temperature3000 K
Luminous efficacy35 lm/W
Luminous flux480 lm
Light color (designation)Warm White
Color rendering index Ra≥80
Standard deviation of color matching<6 sdcm
Light technical data
Beam angle100.00 °
Dimensions & weight
Diameter202.0 mm
Width202.0 mm
Height45.0 mm
Product weight910.00 g
Colors & materials
Product colorGray/ White
Housing colorGray / White
Body materialAluminum
Cover materialPolycarbonate (PC)
Temperatures & operating conditions
Ambient temperature range-20…+40 °C
Lifespan
Number of switching cycles15000
Lifespan L70/B50 at 25 °C30000 h
Additional product data
Mounting typeSurface
Mounting locationCeiling / Wall
Capabilities
DimmableNo
Type of connectionScrew terminal, 3-Pole
LED module replaceableNot replaceable
Certificates & standards
Type of protectionIP54
Protection classI
Protection class IK (shock resistance)IK06
Glow Wire Test according to IEC 695-2-1-
Photobio. safety group acc. to EN62471RG 0
StandardsCE

Model NoDescription
Colour
4058075074934O Surface SQ 13W/3000K GY IP54
Gray
4058075074958 O Surface SQ 13W/3000K WT IP54
White
