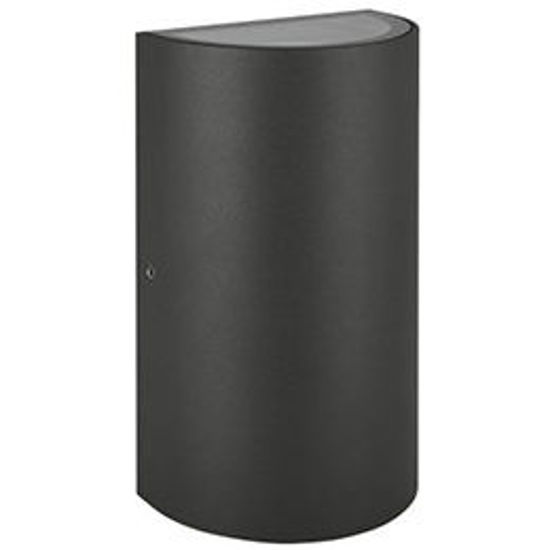

LEDVANCE LED 12W IP54 Oudoor Facade Updown Luminaire

$132.00 incl tax

-LEDVANCE LED 12W IP54 Oudoor Facade Updown Luminaire
- Luminaires with classic shape and light outlet up and down
- Available in Gray and White colours

Product benefits
- Energy-efficient thanks to LED technology
- 5 years guarantee
- Easy and quick installation
- Homogeneous light output

Areas of application
- Outdoor
- Building facades
- Decorative illumination

Product features
- Very bright and functional outdoor LED luminaires
- Type of protection: IP54
- Die-cast aluminum housing
- Available in two housing colors: white and dark gray
- Diffuser made of clear glass

Equipment / Accessories
- Complete mounting and connecting accessories included

Electrical data
Operating modeMains voltage
Mains frequency50/60 Hz
Power factor λ>0.5
Nominal wattage12.00 W
Nominal voltage220…240 V
Nominal current0.055 A
Max. no. of lum. on circuit break. B16 A75
Max. no. of lum. on circuit break. C10 A96
Max. no. of lum. on circuit break. C16 A60
Photometrical data
Color temperature3000 K
Luminous efficacy60 lm/W
Luminous flux700 lm
Light color (designation)Warm White
Color rendering index Ra≥80
Standard deviation of color matching<6 sdcm
Light technical data
Beam angle280.00 °
Dimensions & weight
Length55.0 mm
Width90.0 mm
Height160.0 mm
Product weight480.00 g
Colors & materials
Product colorGray / White
Housing colorGray / White
Body materialAluminum
Cover materialGlass
Temperatures & operating conditions
Ambient temperature range-20…+40 °C
Number of switching cycles15000
Lifespan L70/B50 at 25 °C30000 h
Additional product data
Mounting typeSurface
Mounting locationWall
Type of connectionScrew terminal, 3-Pole
LED module replaceableNot replaceable
Certificates & standards
Type of protectionIP54
Protection classI
Protection class IK (shock resistance)IK06
Glow Wire Test according to IEC 695-2-1-
Photobio. safety group acc. to EN62471RG 0

Model NoDescription
4058075075054O Facade Updown 12W/3000K GY IP54
4058075075078O Facade Updown 12W/3000K WT IP54
