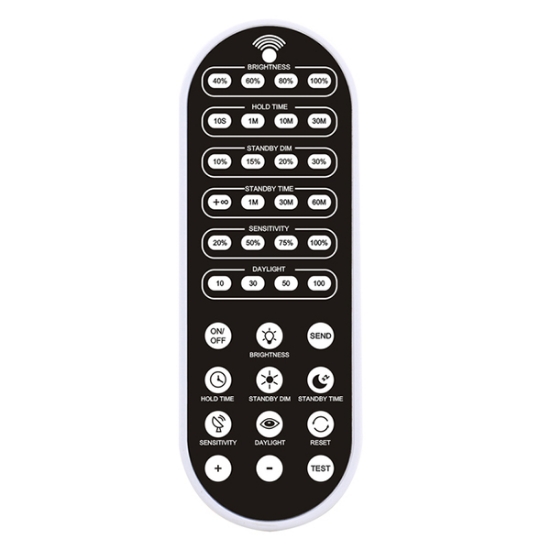

LEDVANCE LDP HB TRI Highbay Remote Control

LEDVANCE Remote Control for LDP HB TRI Highbay

This LEDVANCE Highbay Remote Control is an indispensable tool for electrical contractors and maintenance teams installing the LDP HB TRI-COLOUR MULTI WATTAGE Highbay series. Since these highbays feature adjustable settings (CCT and Wattage), the remote is often required for easy, safe, and efficient commissioning.

Key Features & Trade Benefits:

• Safe & Efficient Commissioning: Allows installers to select the required Tri-Colour (3000K, 4000K, 6000K) and Multi-Wattage settings after the fixture is mounted, eliminating the need for ladders or lift equipment multiple times.

• Sensor Adjustment: If the optional LDP HB Motion Sensor is installed, this remote is used to fine-tune the sensor's parameters (e.g., detection range, hold time, daylight threshold).

• Dimming Control: Provides remote ON/OFF and dimming functionality, crucial for testing light levels and daily operational use.

• Bulk Value (5-Pack): Ensures every installer on a major project has a controller, saving significant time and improving project efficiency.

• Universal Highbay Compatibility: Works with all LEDVANCE LDP HB TRI-COLOUR and MULTI-WATTAGE Highbay models.

Note: This remote may also be compatible with other LEDVANCE luminaires that utilize a specific wireless control protocol.

Areas of application

• Industrial and commercial halls
• Warehouses
• Public areas (stations, stadiums)
• Airports

Dimensions & Weight

• Length 140 mm
• Height 10 mm
• Width 50 mm
• Product weight 52.00 g

Application & Mounting

• Ambient temperature range 0…+50 °C
• Replaceable light source No

Lifespan

• Lifespan L90/B10 at 25 °C 50000 h
• Sensor
• Detection range of motion sensor 3…15 m
