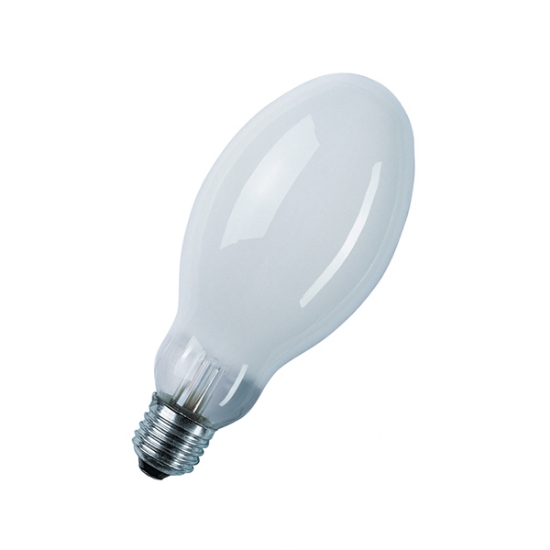

Picture of LEDVANCE HQL 80W E27 Mercury Vapour Lamp Pack (Sold as 10)

LEDVANCE HQL 80W E27 Mercury Vapour Lamp Pack (Sold as 10)

The LEDVANCE HQL 80W E27 Mercury Vapour (HID) lamp provides powerful 6800 lumens of light (3600K). Used in older street lights and commercial area lighting. Requires external ballast (control gear) for operation.
Part No: 4050300012360
$190.00 incl tax

LEDVANCE HQL 80W E27 Mercury Vapour (HID) (Sold as 10)

This LEDVANCE HQL 80W Mercury Vapour Lamp is an essential maintenance solution for municipal and commercial sites that utilize older, high-intensity discharge (HID) lighting fixtures. With a high light output of 6800 lumens, it ensures roads, parks, and industrial areas remain safely and effectively illuminated.

Key Technical Details:

  • Long Life: Rated for a reliable lifespan (L70) up to 24,000 hours, reducing the frequency of replacement cycles.

  • High Luminous Efficacy: Produces 48 lm/W, providing high light levels for wide-area outdoor lighting.

  • Required Control Gear: This lamp is a High-Intensity Discharge lamp and will not operate without the appropriate external Mercury Vapour Ballast (Control Gear). Do not connect directly to the mains.

  • Applications: Primarily used in street lighting, car parks, industrial halls, and general outdoor area lighting in existing luminaires.

Mercury Vapour (HQL) lamps contain toxic mercury (14.6 mg) and are subject to global phase-out regulations due to their high energy consumption and environmental impact.

We highly recommend replacing this lamp with the specialized LEDVANCE HQL LED Retrofit version. The LED alternative:

  • Reduces energy consumption by over 60%.

  • Is mercury-free.

  • Offers an even longer, more stable lifespan.

Areas of application

  • Factories and workshops
  • Industrial installations
  • Streets
  • Car parks, courtyards
  • Pedestrian zones, public squares
  • Parks and gardens
  • Suitable for use in open and enclosed luminaires
  • Outdoor applications only in suitable luminaires

Electrical data

  • Nominal wattage 80 W
  • Construction wattage 80.00 W
  • Nominal voltage 115 V
  • Ignition voltage 0.198 kVp
  • Operating mode Conventional control gear (CCG) without ignitor
  • Nominal current 800 mA
  • PFC capacitor at 50 Hz 8 µF

Photometrical data

  • Luminous flux 3800 lm
  • Luminous efficacy 48 lm/W
  • Color temperature 4100 K
  • Color rendering index Ra 50
  • Light color 541
  • Rated LLMF at 2,000 h 0.88
  • Rated LLMF at 4,000 h 0.83
  • Rated LLMF at 6,000 h 0.78
  • Rated LLMF at 8,000 h 0.75
  • Rated LLMF at 12,000 h 0.70
  • Rated LLMF at 16,000 h 0.65
  • Rated lamp efficacy (standard co.) 48 lm/W
  • UV protection No

Dimensions & Weight

  • Overall length 155.00 mm
  • Diameter 71 mm
  • Product weight 56.00 g
