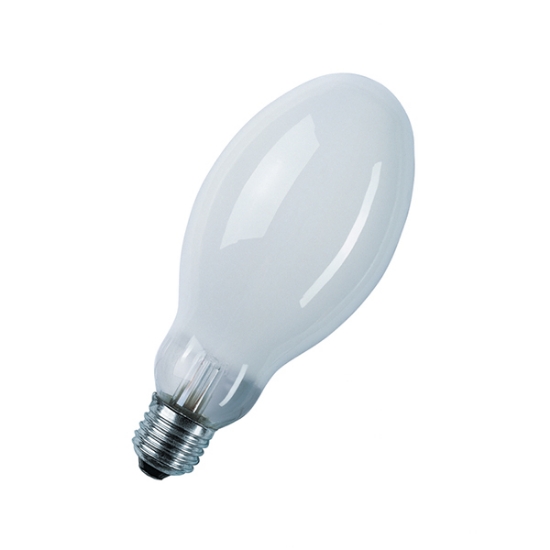

LEDVANCE HQL 125W E27 Mercury Vapour Lamp (Sold as 10)

LEDVANCE HQL 125W E27 Mercury Vapour (HID) (Sold as 10)

This LEDVANCE HQL 125W Mercury Vapour Lamp is an essential maintenance solution for municipal and commercial sites that utilize older, high-intensity discharge (HID) lighting fixtures. With a high light output of 6800 lumens, it ensures roads, parks, and industrial areas remain safely and effectively illuminated.

Key Technical Details:

• Long Life: Rated for a reliable lifespan (L70) up to 25,000 hours, reducing the frequency of replacement cycles.

• High Luminous Efficacy: Produces 54 lm/W, providing high light levels for wide-area outdoor lighting.

• Required Control Gear: This lamp is a High-Intensity Discharge lamp and will not operate without the appropriate external Mercury Vapour Ballast (Control Gear). Do not connect directly to the mains.

• Applications: Primarily used in street lighting, car parks, industrial halls, and general outdoor area lighting in existing luminaires.

Mercury Vapour (HQL) lamps contain toxic mercury (21.8 mg) and are subject to global phase-out regulations due to their high energy consumption and environmental impact.

We highly recommend replacing this lamp with the specialized LEDVANCE HQL LED Retrofit version. The LED alternative:

• Reduces energy consumption by over 60%.

• Is mercury-free.

• Offers an even longer, more stable lifespan.

Areas of application

• Squares, residential areas, parks, main roads and trunk roads
• Car parks and industrial sites
• Hall and effect lighting
• Decorative plant lighting
• Outdoor applications only in suitable luminaires

Electrical data

• Nominal wattage 125 W
• Construction wattage 126.90 W
• Ignition voltage 0.198 kVp
• Nominal current 1.2 A
• PFC capacitor at 50 Hz 10 µF

Photometrical data

• Luminous flux 6800 lm
• Luminous efficacy 54 lm/W
• Color temperature 3600 K
• Color rendering index Ra 52
• Light color 536
• Rated LLMF at 2,000 h 0.93
• Rated LLMF at 4,000 h 0.92
• Rated LLMF at 6,000 h 0.90
• Rated LLMF at 8,000 h 0.89
• Rated LLMF at 12,000 h 0.89
• Rated LLMF at 16,000 h 0.88
• Rated LLMF at 20,000 h 0.85
• Rated lamp efficacy (standard co.) 51 lm/W
• UV protection No

Dimensions & Weight

• Overall length 170.00 mm
• Diameter 76 mm
• Product weight 64.8 g

Lifespan

• Rated lamp survival factor at 2,000 h 0.99
• Rated lamp survival factor at 4,000 h 0.87
• Rated lamp survival factor at 6,000 h 0.49
• Rated lamp survival factor at 8,000 h 0.10
• Lifespan B50 25000 h
• Operation mode LLMF/LSF 50 Hz

Additional product data

• Base (standard designation) E27
• Mercury content 21.8 mg
• Mercury-free No
• Design / version Coated

Capabilities

• Dimmable No
• Burning position Any
• Enclosed luminaire required No
