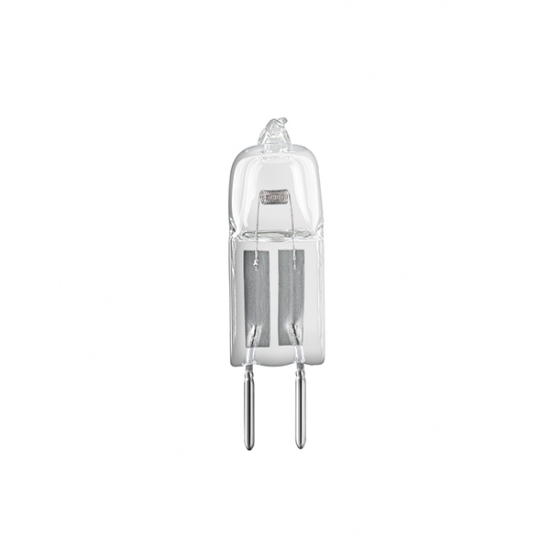

Picture of LEDVANCE HALOSTAR STARLITE 5W 12V G4 Halogen Capsule (Sold as 10)

LEDVANCE HALOSTAR STARLITE 5W 12V G4 Halogen Capsule (Sold as 10)

Genuine LEDVANCE HALOSTAR STARLITE 5W 12V G4 bi-pin halogen capsule. Designed for minimal 12V low-voltage systems, this lamp provides soft, brilliant 2700K Warm White light with a perfect CRI 100. Fully 100% dimmable with no flicker
Part No: 4058075094154
$190.00 incl tax

LEDVANCE HALOSTAR STARLITE 5W 12V G4 Halogen Lamp (Sold as 10)

The LEDVANCE HALOSTAR STARLITE 5W 12V lamp is a traditional, very low-wattage solution perfect for subtle accent lighting in low-voltage fixtures like decorative displays, miniature desk lamps, or reading lights that require the G4 bi-pin base.

Key Features & Technical Requirements:

  • Low Power Draw: At just 5W, this capsule consumes minimal energy, ideal for fixtures with low power limits.

  • Low Voltage Operation: Requires a 12V transformer or LED driver to operate safely. Do not connect directly to 240V mains.

  • Flawless Dimmability: Halogen technology guarantees 100% smooth, continuous dimming with compatible 12V dimmable transformers, ensuring superior performance over many retrofit LEDs.

  • Superior Light Quality: Produces a high-quality, very warm 2700K Warm White light with an essential CRI 100 for true-to-life color rendering.

  • Compact Design: Incredibly small dimensions allow it to fit into nearly any compact luminaire.

Energy Saving Note: While already low-wattage, for maximum longevity (up to 25,000 hours) and maximum energy efficiency, search our site for LED G4 5W Equivalent replacements.

Product benefits

  • Brilliant accent light
  • Incredibly small dimensions for revolutionary new luminaire designs
  • Approved for use in open luminaires (to IEC 60598-1)
  • Axial filament for optimum directional light
  • Special pins for corrosion protection
  • UV filter
  • Contains no mercury

Areas of application

  • General illumination
  • Entrance lighting
  • Accent lighting
  • Lighting for reading
  • Garden lighting
  • Shops
  • Restaurants, hotels and similar prestigious applications
  • Offices, public buildings
  • Outdoor applications only in suitable luminaires

Product features

  • Average life: 2,000 h
  • 100 % dimmable
  • Color rendering index Ra: 100
  • Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.

Electrical data

  • Nominal wattage 5 W
  • Construction wattage 5.00 W
  • Nominal voltage 12 V

Photometrical data

  • Luminous flux 55 lm
  • Luminous efficacy 11 lm/W
  • Light color (designation) Warm White
  • Color temperature 2700 K
  • Color rendering index Ra 100
  • Light color 1027
  • UV protection Yes
  • Light technical data
  • Starting time 0 s

Dimensions & Weight

  • Overall length 33.00 mm
  • Light center length (LCL) 22,0 mm
  • Diameter 10,0 mm
  • Product weight 1.1 g

Additional product data

  • Base (standard designation) G4
  • Mercury-free Yes

Capabilities

  • Dimmable Yes
  • Burning position Any
