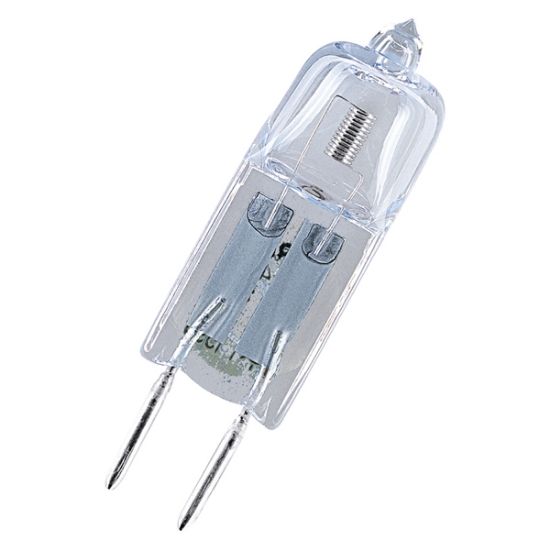

Picture of LEDVANCE HALOSTAR STARLITE 20W 12V GY6.35 Halogen Capsule (Sold as 10)

LEDVANCE HALOSTAR STARLITE 20W 12V GY6.35 Halogen Capsule (Sold as 10)

Genuine LEDVANCE HALOSTAR STARLITE 20W 12V GY6.35 bi-pin halogen capsule. Designed for 12V low-voltage systems, this compact lamp provides brilliant 3000K Warm White light with a perfect CRI 100. Fully 100% dimmable with no flicker.
Part No: 4058075094239
$250.00 incl tax

LEDVANCE HALOSTAR STARLITE 20W 12V GY6.35 Halogen Lamp (Sold as 10)

The LEDVANCE HALOSTAR STARLITE 20W 12V lamp is the standard, low-voltage solution for display cases, mirror lighting, and sophisticated track lighting that requires the GY6.35 bi-pin base. It provides consistent, brilliant light in a compact form factor.

Key Features & Technical Requirements:

  • Low Voltage Operation: Requires a 12V transformer or LED driver to operate safely. Do not connect directly to 240V mains.

  • Flawless Dimmability: Halogen technology guarantees 100% smooth, continuous dimming with compatible 12V dimmable transformers, ensuring superior performance over many retrofit LEDs.

  • Superior Light Quality: Produces a high-quality, rich 3000K Warm White light with a perfect CRI 100 for true-to-life color rendering.

  • Compact Design: Incredibly small dimensions (approx. 44mm long) allow it to fit into highly specialized or small luminaires.

Energy Saving Note: This 20W halogen capsule has a short life (approx. 4,000 hours) and consumes high power. For significant energy savings (up to 90%) and a much longer lifespan, search our site for LED GY6.35 20W Equivalent replacements.

Product benefits

  • Brilliant accent light
  • Incredibly small dimensions for revolutionary new luminaire designs
  • Approved for use in open luminaires (to IEC 60598-1)
  • Axial filament for optimum directional light
  • Special pins for corrosion protection
  • UV filter
  • Contains no mercury

Areas of application

  • General illumination
  • Entrance lighting
  • Accent lighting
  • Lighting for reading
  • Garden lighting
  • Shops
  • Restaurants, hotels and similar prestigious applications
  • Offices, public buildings
  • Outdoor applications only in suitable luminaires

Product features

  • Average life: 2,000 h
  • 100 % dimmable
  • Color rendering index Ra: 100
  • Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.

Electrical data

  • Nominal wattage 20 W
  • Construction wattage 20.00 W
  • Nominal voltage 12 V

Photometrical data

  • Luminous flux 300 lm
  • Luminous efficacy 15 lm/W
  • Light color (designation) Warm White
  • Color temperature 2800 K
  • Color rendering index Ra 100
  • Light color 1028
  • UV protection Yes
  • Light technical data
  • Starting time 0.0 s

Dimensions & Weight

  • Overall length 44.00 mm
  • Light center length (LCL) 30,0 mm
  • Diameter 12.0 mm
  • Product weight 2.1 g

Lifespan

  • Number of switching cycles 50000

Additional product data

  • Base (standard designation) GY6.35
  • Mercury-free Yes

Capabilities

  • Dimmable Yes
  • Burning position Any

Certificates & Standards

  • Energy efficiency class G
  • Energy consumption 20.00 kWh/1000h
