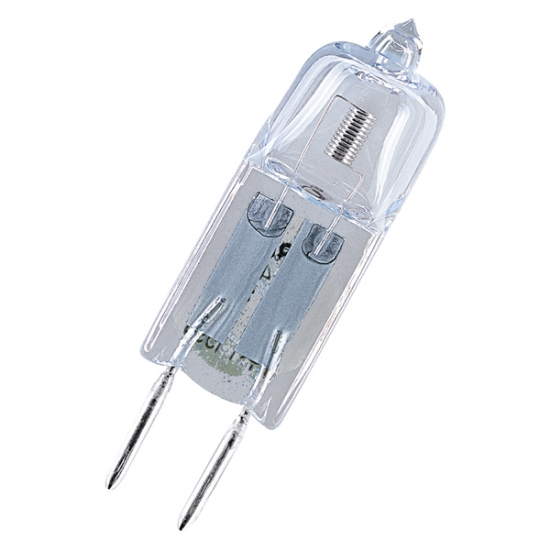

Picture of LEDVANCE HALOSTAR 50W 24V GY6.35 Halogen Capsule (Sold as 10)

LEDVANCE HALOSTAR 50W 24V GY6.35 Halogen Capsule (Sold as 10)

Genuine LEDVANCE HALOSTAR 50W 24V GY6.35 bi-pin halogen capsule. Designed for low-voltage systems, this lamp provides powerful, brilliant 3000K Warm White light with a perfect CRI 100. Fully 100% dimmable with no flicker.
Part No: 4058075177864
$250.00 incl tax

LEDVANCE HALOSTAR 50W 24V GY6.35 Halogen Lamp (Sold as 10)

The LEDVANCE HALOSTAR 50W 24V lamp is a high-performance halogen capsule designed for specialized low-voltage fixtures, such as desk lamps, track lighting, and display lighting that utilize a 24V power supply or transformer. This lamp provides superior light quality often required for accent and decorative illumination.

Key Features & Technical Requirements:

  • Low Voltage Operation: Requires a 24V transformer to run safely. Do not connect directly to 240V mains.

  • High Performance: Delivers approximately 900 lumens of high-intensity light.

  • Flawless Dimmability: Halogen technology ensures 100% smooth, continuous dimming with appropriate dimmable 24V transformers.

  • Superior Light Quality: Produces a high-quality, rich 3000K Warm White light with a perfect CRI 100, essential for true color rendering in retail and museum displays.

  • Compact Design: The small capsule size allows it to fit into highly compact luminaires.

Energy Saving Note & LED Alternative: This 50W lamp is a high-power consumption product. For significant energy savings and a much longer life, search our site for the LEDVANCE 24V GY6.35 LED replacement. This is the recommended long-term, energy-efficient upgrade.

Product benefits

  • Base pins are tempered to protect against corrosion
  • Axial filament ensures optimum directional light
  • High illuminance level
  • Contains no mercury
  • Brilliant accent lighting
  • Incredibly small dimensions for revolutionary new luminaire designs
  • Approved for use in open luminaires (to IEC 60598-1)
  • UV filter

Areas of application

  • Kitchen lighting
  • Mirror lighting
  • Lighting for reading
  • Entrance lighting
  • Shops
  • Restaurants, hotels and similar prestigious applications
  • Offices, public buildings

Product features

  • Average life: 2,000 h
  • 100 % dimmable
  • Color rendering index Ra: 100
  • Base: G4, GY6.35
  • Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.

Electrical data

  • Nominal wattage 50 W
  • Construction wattage 50.00 W
  • Nominal voltage 24 V
  • Power factor λ 1.00

Photometrical data

  • Luminous flux 900 lm
  • Luminous efficacy 18 lm/W
  • Lumen main.fact.at end of nom.life time 0.80
  • Light color (designation) Warm White
  • Color temperature 3000 K
  • Color rendering index Ra 100
  • Light color 1030
  • UV protection Yes
  • Light technical data
  • Warm-up time (60 %) 0.00 s
  • Starting time 0.0 s

Dimensions & Weight

  • Overall length 44.00 mm
  • Light center length (LCL) 30,0 mm
  • Diameter 12.0 mm
  • Maximum diameter 12 mm
  • Product weight 2.23 g

Lifespan

  • Number of switching cycles 50000

Additional product data

  • Base (standard designation) GY6.35
  • Mercury content 0.0 mg
  • Mercury-free Yes
  • Product remark Quick-acting miniature fuse needed acc. to EN60432-3

Capabilities

  • Dimmable Yes
  • Burning position Any
