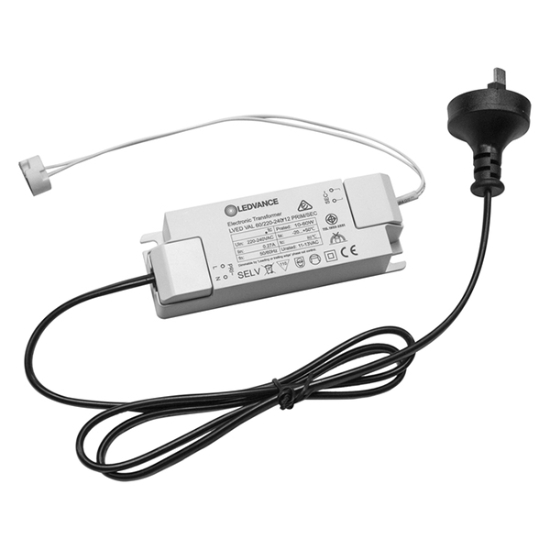

Picture of LEDVANCE VED VAL 60W Dimmable Electronic Transformer (Sold as 2)
Picture of LEDVANCE VED VAL 60W Dimmable Electronic Transformer (Sold as 2)
Picture of LEDVANCE VED VAL 60W Dimmable Electronic Transformer (Sold as 2)

LEDVANCE VED VAL 60W Dimmable Electronic Transformer (Sold as 2)

Upgrade your 12V lighting system with the LEDVANCE VED VAL 60W Electronic Transformer. This universal, dimmable driver is perfectly optimized for flicker-free performance with both Halogen and LED MR16 lamps using standard Leading/Trailing Edge dimmers.
Part No: 4099854089732
$145.00 incl tax

LEDVANCE VED VAL 60W 12V AC Electronic Transformer (Dimmable) (Sold as 2)

The LEDVANCE VED VAL 60W Electronic Transformer is the robust, high-performance solution for safely operating low-voltage 12V lighting systems on 220-240V mains power. This compact transformer is designed for easy installation in concealed spaces in both residential and commercial applications.

Key Features for Reliability & Safety:

  • Universal Dimmability: Specifically engineered for smooth, flicker-free light regulation when used with Leading Edge (TRIAC) and Trailing Edge (ELV) phase-cut dimmers, ensuring wide compatibility with existing Australian dimmer switches.

  • Versatile Load: Handles a wide load range of 10W to 60W (12V AC output), making it suitable for single or multiple MR16 Halogen or LED retrofit lamps.

  • SELV Safety: Features Safety Extra-Low Voltage (SELV) equivalent protection, along with built-in short-circuit, overload, and over-temperature protection for maximum safety and reliability.

  • Compliance: Fully compliant with relevant Australian (SAA) and international standards for safety and electromagnetic compatibility (EMC).

  • Long-Life Design: Engineered for an average lifetime of up to 35,000 hours, drastically reducing maintenance costs in high-use environments like shops, hotels, and hospitals.

Applications: Ideal for powering 12V downlights in kitchens, living rooms, corridors, retail display lighting, and museum accent lighting.

Product benefits

  • Long lifetime to reduce the maintenance cost
  • High Power factor
  • Suitable for leading and trailing edge phase cut dimming
  • Output voltage: 12 V AC
  • Wide ambient temperature range -20 to +50 o C
  • Compact design
  • SELV, more safety application
  • All types comply with IEC safety standards
  • Fulfill EMC requirement
  • Good compatibility with dimmable lamps

Areas of application

  • Shop lighting
  • Residential
  • Hotels
  • Museums, art galleries
  • Hospitals

Product features

  • Constant voltage 12V LED electronic transformer
  • IP20 for indoor application
  • Average lifetime up to 35,000 hours
  • Frequency: 50/60Hz
  • Input voltage: 220…240 VAC
  • Easy to install
  • SELV equivalent
  • Designed for both halogen and LED lamps
  • Suitable for independent application

Electrical data

  • Nominal wattage 60.00 W
  • Nominal voltage 220…240 V
  • Nominal output voltage 11…13 V
  • Input voltage AC 220-240 V
  • Nominal current 270 mA
  • Mains frequency 50/60 Hz
  • Total harmonic distortion ≤ 10 % 1)
  • Power factor λ > 0.95 2)
  • Surge capability (L-N) 1 kV
  • Operating frequency 50/60 Hz
  • 1) Full load with halogen lamps
  • 2) At full load

Dimensions & Weight

  • Length 119.00 mm
  • Width 42.00 mm
  • Height 25.00 mm
  • Product weight 171.00 g

Colors & materials

  • Casing material Polycarbonate (PC)
  • Body material Polycarbonate (PC)

Temperatures & operating conditions

  • Ambient temperature range -20…+50 °C
  • Maximum temperature at tc test point 80 °C

Capabilities

  • Dimmable Yes
  • Dimming interface Phase Cut
  • Overheating protection Yes
  • Overload protection Yes
  • Short-circuit protection Yes
  • No-load proof Yes

Certificates & Standards

  • Approval marks – approval CB, EMC, SAA
  • Protection class II
  • Type of protection IP20
