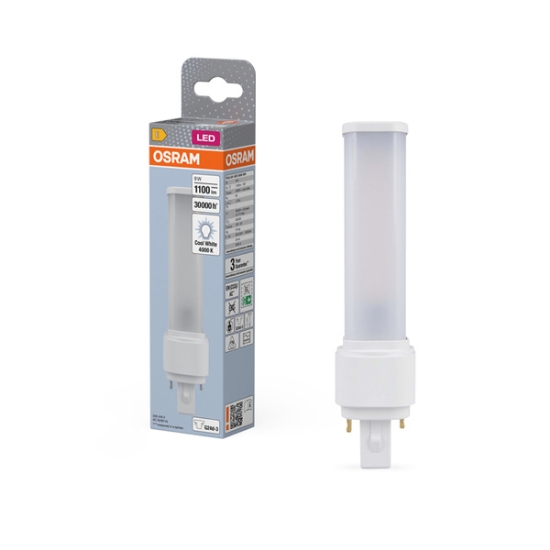

Picture of LEDVANCE DULUX LED D 9W G24d-3 Lamp (Sold as 10)

LEDVANCE DULUX LED D 9W G24d-3 Lamp (Sold as 10)

Upgrade outdated 26W CFL fittings with this powerful 9W LEDVANCE DULUX LED (1100lm, 4000K Neutral White). Compatible with existing G24d-3 (2-pin) sockets, it runs directly on AC Mains or Conventional Ballast (CCG) with a rotatable base for perfect light alignment.
Part No: 4058075558601
Old price: $375.00 incl tax
$325.00 incl tax

LEDVANCE DULUX LED D26 (9W) G24d-3 Professional Retrofit Lamp (Sold as 10)

The LEDVANCE DULUX LED D26 is the ideal, mercury-free LED replacement for conventional 26W compact fluorescent lamps (CFLs) with the 2-pin G24d-3 base. Engineered for maximum flexibility in commercial environments, this 9W lamp slashes energy consumption while providing superior light quality and an exceptionally long 30,000-hour lifespan.

Key Features for Easy Installation & Cost Savings:

  • Dual Compatibility: Designed to operate seamlessly on either a Conventional Control Gear (CCG/Magnetic Ballast) or directly wired to 230V AC Mains, ensuring simple plug-and-play installation in most existing downlights.

  • High Output & Efficiency: Delivers 1100 lumens of high-lumen light from only 9W, reducing electricity usage by over 60% compared to the 26W fluorescent it replaces.

  • Rotatable Base (±90°): The G24d-3 base can be rotated up to 90 degrees, allowing precise alignment of the directional LED light panel for optimal illumination in recessed fixtures.

  • Light Quality: Provides 4000K Neutral White (840) light, which is perfect for working environments like offices, corridors, supermarkets, and hotels where clear, stimulating illumination is preferred.

  • Mercury-Free: A safe and environmentally responsible alternative to mercury-containing CFLs.

Product benefits

  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible

Areas of application

  • Supermarkets and department stores
  • Walkways and corridors
  • Hotels, restaurants

Product features

  • LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
  • Rotatable base around its longitudinal axis (± 90°)
  • Lifetime up to 30,000 h
  • Single-ended two-pin plug-in G24d base
  • Type of protection: IP20
  • Mercury-free lamps
  • Safety advice
  • Not suitable for tandem operation.
  • The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • All electrical connections must be made by a qualified person.
  • Not suitable for emergency lighting.
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.

Electrical data

  • Nominal wattage 9 W
  • Construction wattage 9.00 W
  • Nominal voltage 220…240 V
  • Operating mode Conventional control gear (CCG), AC
  • Claimed equiv. conventional lamp power 26 W
  • Nominal current 43 mA
  • Type of current AC
  • Inrush current 18.2 A
  • Suitable for DC input Yes
  • Input voltage DC 186…260 V 1)
  • Operating frequency 50/60 Hz
  • Mains frequency 50/60 Hz
  • Max. lamp number on MCB B10 A 32
  • Max. lamp number on MCB B10 A - CCG without compensation 93
  • Max. lamp number on MCB B10 A - CCG with compensation 8
  • Max. lamp number on MCB B16 A 41
  • Max. lamp number on MCB B16 A - CCG without compensation 149
  • Max. lamp number on MCB B16 A - CCG with compensation 11
  • Total harmonic distortion ≤ 30 %
  • Power factor λ > 0.90
  • 1) Permitted voltage range

Photometrical data

  • Luminous flux 1100 lm
  • Nominal useful luminous flux 90° 1100 lm
  • Luminous efficacy 122 lm/W
  • Lumen main.fact.at end of nom.life time 0.70
  • Light color (designation) Cool White
  • Color temperature 4000 K
  • Color rendering index Ra 80
  • Light color 840
  • Standard deviation of color matching ≤6 sdcm
  • Rated LLMF at 6,000 h 0.90
  • Flickering metric (Pst LM) 1.0
  • Stroboscope effect metric (SVM) 0.4
  • Light technical data
  • Beam angle 120 °
  • Warm-up time (60 %) ‹ 0.50 s
  • Starting time < 0.5 s

Dimensions & Weight

  • Overall length 171.00 mm
  • Diameter 35.00 mm
  • Tube diameter 27,0 mm
  • Maximum diameter 35 mm
  • Product weight 62.00 g

Temperatures & operating conditions

  • Ambient temperature range -20…+45 °C 1)
  • Maximum temperature at tc test point 75 °C
  • 1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire

Lifespan

  • Lifespan L70/B50 at 25 °C 30000 h
  • Number of switching cycles 200000
  • Lumen maintenance at end of service lifetime 0.70
  • Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

  • Base (standard designation) G24d-3
  • Mercury content 0.0 mg
  • Mercury-free Yes
  • Design / version Frosted

Capabilities

  • Dimmable No
