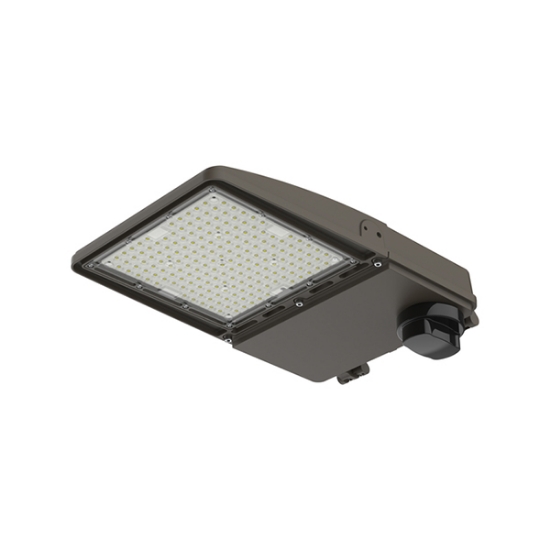

LEDVANCE AREASTER 300W Multi-Watt Flood Light: 45,000lm, IP66, 5000K

LEDVANCE AREASTER LAL300MW: Extreme Output Multi-Watt LED Area Light

The LEDVANCE AREASTER LAL300MW is the ultimate choice for large-scale outdoor and industrial lighting, designed as a direct, energy-efficient replacement for high-wattage HID fixtures. This powerful unit boasts an innovative Multi-Wattage driver, allowing the installer to easily select the optimal light output from 300W (45,000 lm), 200W (30,000 lm), or 150W (22,500 lm) via an external dip switch. This versatility guarantees the perfect fit for high-mast lighting and expansive area illumination.

Maximum Performance and Rugged Durability:

• Massive Lumen Output: Generates up to 45,000 lumens with a high luminous efficacy of 150 lm/W, providing maximum brightness while drastically cutting energy consumption.

• Premium Protection: Rated IP66 against all weather and dust ingress, and IK08 against heavy impacts. The robust Die-Cast Aluminum housing is built for longevity in the harshest environments.

• Specialized Light Distribution: Features Type III Asymmetric optics, engineered to efficiently cover very wide areas, making it ideal for large parking lots, main thoroughfares, and high-mast installations where uniform coverage is critical.

• Investment Security: Comes with a comprehensive 5-Year Manufacturer's Guarantee and an exceptional L70 lifetime of over 100,000 hours.

Product benefits

• Bright, robust and durable
• Highly versatile due to selectable power steps (Multi Lumen) on the housing
• Flexible mounting options
• 5 years guarantee

Areas of application

• Industrial lighting (e.g. manufacturing plants, logistic centers, warehouses)
• Streets, residential areas, pedestrian zones, parks
• Parking lots, city squares, parks
• Driveways

Product features

• Multi Power and Multi lumen, power selectable
• Luminous efficacy: up to 150 lm/W
• Type III Asymmetric light distribution for area lighting
• Mounting accessories must be ordered separately: Slip Fitter, U-Bracket
• Robust die-cast aluminum housing
• Flicker free
• Photocell detector available for daylight detection

Electrical data

• Nominal wattage 300 W / 200 W / 150 W
• Nominal voltage 100…277 V
• Mains frequency 50…60 Hz
• Nominal current 2520.000 mA
• Inrush current time Th50 500 µs
• Max. number of luminaires per miniature circuit breaker C16 7
• Power factor λ > 0.90
• Total harmonic distortion < 15 %
• Protection class I
• Surge capability (L-N) > 6 kV
• Operating mode Integrated LED driver

Photometrical data

• Luminous flux 5000 lm / 3000 lm / 22500 lm
• Luminous efficacy 150 lm/W
• Color temperature 5000 K
• Light color (designation) Cool White
• Color rendering index Ra 70
• Standard deviation of color matching < 4 sdcm
• Photobiological safety group acc. to EN62778 RG1

Dimensions & Weight

• Length 541.00 mm
• Height 55.00 mm
• Width 345.00 mm
• Product weight 5320.00 g
• Cable length 1000 mm

Materials & Colors

• Product color Black
• Housing color Black
• Body material Aluminum
• Cover material Polycarbonate (PC)
• Light emitting surface material Polycarbonate (PC)
• Glow Wire Test according to IEC 60695-2-12 650 °C

Application & Mounting

• Temperature range at storage -30…+80 °C
• Type of connection Cable, 3-pole
• Type of protection IP66
• Protection class IK (shock resistance) IK08
• Dimmable No
• Mounting type Surface
• Mounting location All surfaces
• Replaceable light source No

Lifespan

• Lifespan L70/B50 at 25 °C > 100000 h 1)
• Lifespan L80/B10 at 25 °C 100000 h 1)
• Lifespan L90/B10 at 25 °C 50000 h
• Number of switching cycles 100000

Control gear

• Output current 1340 mA

Certificates & Standards

• Standards CB, RCM, TM21, LM79, ISTMT
• Replaceable light source (EPREL) Not replaceable
