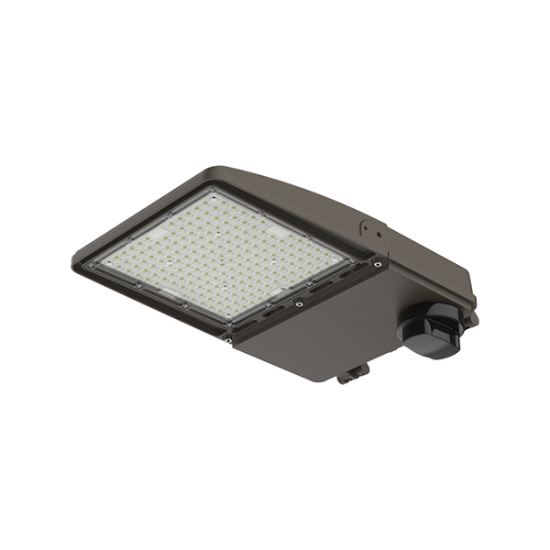

LEDVANCE AREASTER Flood Light 75W-50W-25W 5000K
The adaptable LEDVANCE AREASTER Area Light offers selectable output of 75W, 50W, or 25W, reaching up to 11,250 lumens of bright 5000K Daylight. Perfect for pathways, driveways, and small car parks, this compact floodlight features an IP66/IK08 rating and a 5-year guarantee for reliable outdoor performance.
LEDVANCE AREASTER LAL75MW: Flexible, High-Efficiency Area Lighting
The LEDVANCE AREASTER LAL75MW Multi-Watt Area Light is engineered to bring professional-grade efficiency and versatility to mid-to-small scale outdoor environments. This fixture is the ultimate multi-purpose solution, featuring a simple on-site switch to select between three power settings: 75W (11,250 lm), 50W (7,500 lm), or 25W (3,750 lm). This feature allows installers to stock a single SKU while precisely meeting the lighting needs of different zones, from driveways to small parking areas.
Key Features and Reliability:
Exceptional Efficacy: Delivers outstanding light output with efficiency up to 150 lumens per watt, making it one of the most cost-effective fixtures in its class.
Superior Durability: Built with a rugged, black Die-Cast Aluminum housing, carrying an IP66 rating for protection against harsh weather and an IK08 rating for high impact resistance.
Targeted Illumination: Uses Type III Asymmetric light distribution to provide wide, forward-focused illumination, perfect for minimizing light spill and maximizing coverage along roadsides and pathways.
Long-Term Value: Backed by a full 5-Year Manufacturer's Guarantee and a maintenance-free life of over 100,000 hours, ensuring reliable performance for years.
Optional Integration: Compatible with the optional Photocell Detector accessory for automatic dusk-to-dawn operation and enhanced energy savings.
Product benefits
- Bright, robust and durable
- Highly versatile due to selectable power steps (Multi Lumen) on the housing
- Flexible mounting options
- 5 years guarantee
Areas of application
- Industrial lighting (e.g. manufacturing plants, logistic centers, warehouses)
- Streets, residential areas, pedestrian zones, parks
- Parking lots, city squares, parks
- Driveways
Product features
- Multi Power and Multi lumen, power selectable
- Luminous efficacy: up to 150 lm/W
- Type III Asymmetric light distribution for area lighting
- Mounting accessories must be ordered separately: Slip Fitter, U-Bracket
- Robust die-cast aluminum housing
- Flicker free
- Photocell detector available for daylight detection
Electrical data
- Nominal wattage 75 W / 50 W / 25 W
- Nominal voltage 100…277 V
- Mains frequency 50…60 Hz
- Nominal current 360.000 mA
- Inrush current time Th50 200 µs
- Max. number of luminaires per miniature circuit breaker C16 34
- Power factor λ > 0.90
- Total harmonic distortion < 15 %
- Protection class I
- Surge capability (L-N) > 6 kV
- Operating mode Integrated LED driver
Photometrical data
- Luminous flux 11250 lm / 7500 lm / 3750 lm
- Luminous efficacy 150 lm/W
- Color temperature 5000 K
- Light color (designation) Cool White
- Color rendering index Ra 70
- Standard deviation of color matching < 4 sdcm
- Photobiological safety group acc. to EN62778 RG1
Dimensions & Weight
- Length 430.00 mm
- Height 55.00 mm
- Width 267.00 mm
- Product weight 3150.00 g
- Cable length 1000 mm
Materials & Colors
- Product color Black
- Housing color Black
- Body material Aluminum
- Cover material Polycarbonate (PC)
- Light emitting surface material Polycarbonate (PC)
- Glow Wire Test according to IEC 60695-2-12 650 °C
Application & Mounting
- Temperature range at storage -30…+80 °C
- Type of connection Cable, 3-pole
- Type of protection IP66
- Protection class IK (shock resistance) IK08
- Dimmable No
- Mounting type Surface
- Mounting location All surfaces
- Replaceable light source No
Lifespan
- Lifespan L70/B50 at 25 °C > 100000 h 1)
- Lifespan L80/B10 at 25 °C 100000 h 1)
- Lifespan L90/B10 at 25 °C 50000 h
- Number of switching cycles 100000
