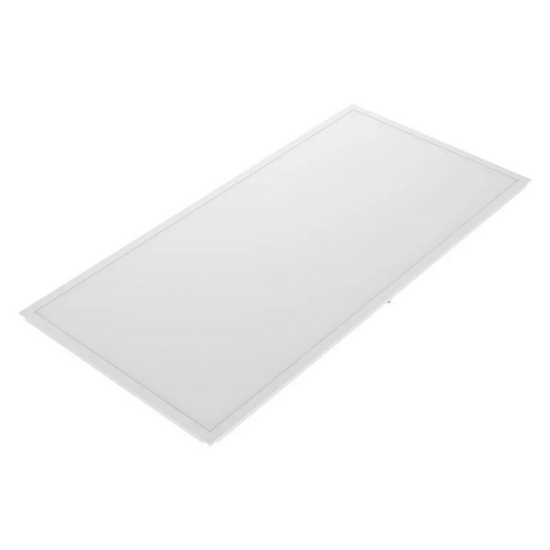

Picture of LEDVANCE Panel PLUS LED Luminaires 0612 49W TRI UGR19 Dimmable Version

LEDVANCE Panel PLUS LED Luminaires 0612 49W TRI UGR19 Dimmable Version

LDVAL PAN0612 49W TRI UGR19 DIM. Upgrade your commercial lighting with the LEDVANCE LED Panel PLUS 0612. This high-performance, compact panel features a dual wattage switch (49W) and a versatile TRI-Colour switch, allowing you to select between Warm White (3000K), Cool White (4000K), and Daylight (5700K). The ultra-low UGR<19 rating ensures excellent visual comfort, making it ideal for offices, schools, and conference rooms where reduced glare is essential.
Part No: 4099854247170
$265.00 incl tax

LEDVANCE Panel PLUS LED Luminaires 0612 49W TRI UGR19 Dimmable Version

Product benefits

  • Available in dual wattage version, phase dimming version and DALI version
  • High luminous efficacy
  • Good glare reduction (UGR < 19)

Areas of application

  • Offices, conference rooms
  • Reception areas and foyers
  • Entrances / Hallways
  • Retail
  • Hospitality
  • Libraries, schools

Product features

  • TRI colour in 3000K, 4000K and 5700K
  • Beam angle: 90°
  • Type of protection: IP54
  • High luminous efficacy: up to 120 lm/W
  • Pre-wired with flex and plug
  • Lifetime: up to 50,000 h

Specifications

  • Nominal wattage: 49.00 W
  • Nominal voltage: 220…240 V
  • Mains frequency: 50…60 Hz
  • Nominal current: 280.000 mA
  • Power factor λ: > 0.90
  • Protection class: II
  • Operating mode: External LED driver

Photometrical data

  • Luminous flux : 5850 lm
  • Luminous efficacy : 120 lm/W
  • Color temperature : 3000 … 5700 K
  • Light color (designation) : Warm White, Cool White, Cool Daylight
  • Color rendering index Ra : > 80
  • Standard deviation of color matching : < 5 sdcm
  • Beam angle : 90 °
  • UGR : < 19

Dimensions and Weight

  • Length: 1195.00 mm
  • Height: 34.00 mm
  • Width: 595.00 mm
  • Product weight: 3770.00 g

Application & Mounting

  • Ambient temperature range: 10…+40 °C
  • Type of protection: IP54/IP20
  • Dimmable: Yes
  • Mounting type: Recessed
  • Mounting location: Ceiling
  • Application environment: Indoor
  • Mounting length: 1195.00 mm
  • Mounting width: 595.00 mm

Materials and Colors

  • Product color: White
  • Housing color: White
  • Body material: Steel
  • Mercury content: 0.0 mg
