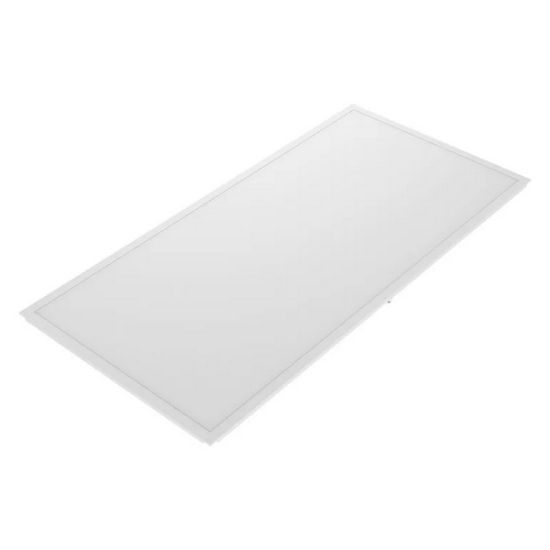

Picture of LEDVANCE Panel PLUS LED Luminaires 0612 49W TRI UGR19 DALI Version

LEDVANCE Panel PLUS LED Luminaires 0612 49W TRI UGR19 DALI Version

LDVAL PAN0612 49W TRI UGR19 DALI - The LEDVANCE Panel PLUS is a high-performance, versatile LED luminaire perfect for office, conference, and educational spaces. This premium 49W DALI version features adjustable TRI-Color technology (3000K, 4000K, and 5700K) to easily match any environment. Its advanced optics ensure a low-glare rating of UGR < 19, making it ideal for workplaces with computer screens. With a high luminous efficacy (up to 120 lm/W) and a long 50,000-hour lifetime, this 1195mm x 595mm panel delivers bright, energy-efficient, and fully controllable lighting via the DALI dimming protocol. The robust IP54 front protection also makes it suitable for damp locations.
Part No: 4099854247095
$365.00 incl tax

LEDVANCE Panel PLUS LED Luminaires 0612 49W TRI UGR19 DALI Version

Product benefits

  • Available in dual wattage version, phase dimming version and DALI version
  • High luminous efficacy
  • Good glare reduction (UGR < 19)

Areas of application

  • Offices, conference rooms
  • Reception areas and foyers
  • Entrances / Hallways
  • Retail
  • Hospitality
  • Libraries, schools

Product features

  • TRI colour in 3000K, 4000K and 5700K
  • Beam angle: 90°
  • Type of protection: IP54
  • High luminous efficacy: up to 120 lm/W
  • Pre-wired with flex and plug
  • Lifetime: up to 50,000 h

Specifications

  • Nominal wattage: 49.00 W
  • Nominal voltage: 220…240 V
  • Mains frequency: 50…60 Hz
  • Nominal current: 200.000 mA
  • Power factor λ: > 0.90
  • Protection class: II
  • Operating mode: External LED driver

Photometrical data

  • Luminous flux : 5850 lm
  • Luminous efficacy : 120 lm/W
  • Color temperature : 3000 … 5700 K
  • Light color (designation) : Warm White, Cool White, Cool Daylight
  • Color rendering index Ra : > 80
  • Standard deviation of color matching : < 5 sdcm
  • Beam angle : 90 °
  • UGR : < 19

Dimensions and Weight

  • Length: 1195.00 mm
  • Height: 34.00 mm
  • Width: 595.00 mm
  • Product weight: 3700.00 g

Application & Mounting

  • Ambient temperature range: 10…+40 °C
  • Type of protection: IP54/IP20
  • Dimmable: No
  • Mounting type: Recessed
  • Mounting location: Ceiling
  • Application environment: Indoor
  • Mounting length: 1195.00 mm
  • Mounting width: 295.00 mm

Materials and Colors

  • Product color: White
  • Housing color: White
  • Body material: Steel
  • Mercury content: 0.0 mg
