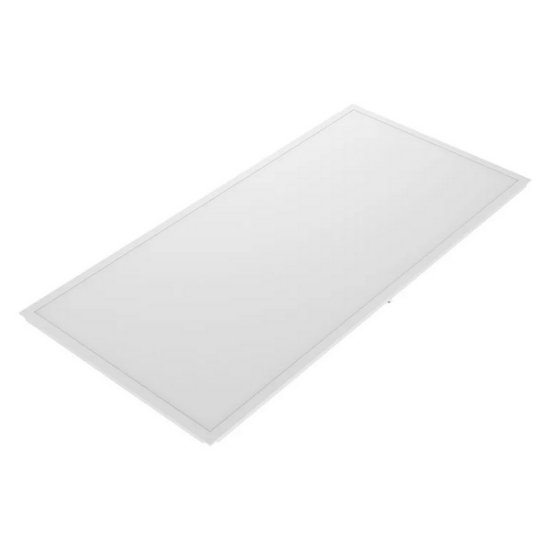

Picture of 1200x600 LED Panel Light - 45W Tri-Colour UGR19 Low Glare LEDVANCE Plus

1200x600 LED Panel Light - 45W Tri-Colour UGR19 Low Glare LEDVANCE Plus

Maximize your light output with the LEDVANCE Plus 1200x600 LED Panel. Delivering a powerful 45W output, this large-format panel features a UGR<19 low-glare rating to ensure a comfortable, productive environment in large commercial spaces. With Tri-Colour technology (3000K/4000K/5000K), you can easily customize the atmosphere to suit your specific office or retail needs.
Part No: 4099854246982
Old price: $305.00 incl tax
$255.00 incl tax

LEDVANCE LED Panel PLUS Luminaires 0606 33/27W TRI UGR19 Version

The LED Panel Plus 0612-49-45W is the professional choice for large-scale illumination. Measuring 1200 x 600mm, it provides a wide, even light distribution that reduces the number of fixtures required in large areas. Designed with a UGR19 micro-prismatic diffuser, it effectively eliminates the "harshness" often associated with high-output LED lighting.

Key Benefits for Your Project:

  • Large Format Coverage: The 1200x600 size is ideal for replacing older dual 36W fluorescent troffers, providing more light for less power.

  • Tri-Colour Switchable: Features 3-in-1 colour temperature selection (Warm, Neutral, or Cool White) via an onboard switch.

  • Glare Control (UGR<19): Fully compliant with Australian office lighting standards to prevent eye fatigue and screen reflections.

  • High Lumen Performance: The 45W LED engine provides a high-density light throw, perfect for high ceilings or areas requiring extra brightness.

  • Durable Design: Built with a flicker-free driver and a slimline profile for easy installation into standard T-bar grids or surface mount frames.

Product benefits

  • Available in dual wattage version, phase dimming version and DALI version
  • High luminous efficacy
  • Good glare reduction (UGR < 19)

Areas of application

  • Offices, conference rooms
  • Reception areas and foyers
  • Entrances / Hallways
  • Retail
  • Hospitality
  • Libraries, schools

Product features

  • TRI colour in 3000K, 4000K and 5700K
  • Beam angle: 90°
  • Type of protection: IP54
  • High luminous efficacy: up to 120 lm/W
  • Pre-wired with flex and plug
  • Lifetime: up to 50,000 h

Specifications

  • Nominal wattage: 45 W / 49 W
  • Nominal voltage: 220…240 V
  • Mains frequency: 50…60 Hz
  • Nominal current: 280.000 mA
  • Power factor λ: > 0.90
  • Protection class: II
  • Operating mode: External LED driver

Photometrical data

  • Luminous flux: 5400 … 5850 lm
  • Luminous efficacy: 120 lm/W
  • Color temperature: 3000 … 5700 K
  • Light color (designation): Warm White, Cool White, Cool Daylight
  • Color rendering index Ra: > 80
  • Standard deviation of color matching: < 5 sdcm
  • Beam angle: 90 °
  • UGR: < 19

Dimensions and Weight

  • Length: 1195.00 mm
  • Height: 34.00 mm
  • Width: 595.00 mm
  • Product weight: 3634.00 g

Application & Mounting

  • Ambient temperature range: 10…+40 °C
  • Type of protection: IP54/IP20
  • Dimmable: No
  • Mounting type: Recessed
  • Mounting location: Ceiling
  • Application environment: Indoor
  • Mounting length: 1195.0 mm
  • Mounting width: 595.00 mm

Materials and Colors

  • Product color: White
  • Housing color: White
  • Body material: Steel
  • Mercury content: 0.0 mg
