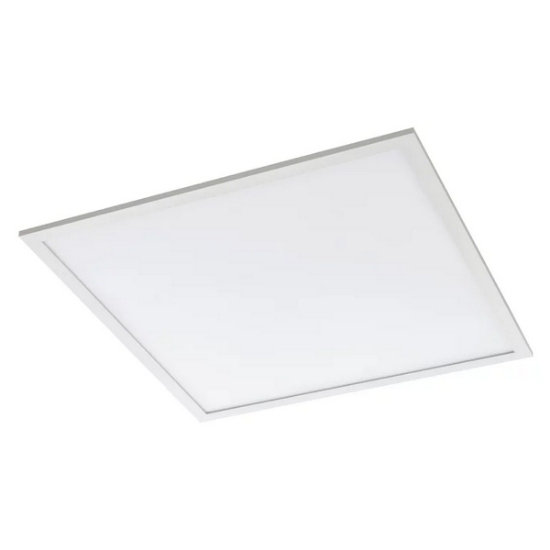

Picture of LEDVANCE Panel PLUS LED Luminaires 0606 33W TRI UGR19 DALI Version

LEDVANCE Panel PLUS LED Luminaires 0606 33W TRI UGR19 DALI Version

LDVAL PAN0606 33W TRI UGR19 DALI - Upgrade your commercial lighting with the LEDVANCE LED Panel PLUS 0306. This high-performance, compact panel features a dual wattage switch (20W/15W) and a versatile TRI-Colour switch, allowing you to select between Warm White (3000K), Cool White (4000K), and Daylight (5700K). The ultra-low UGR<19 rating ensures excellent visual comfort, making it ideal for offices, schools, and conference rooms where reduced glare is essential.
Part No: 4099854247002
Old price: $295.00 incl tax
$265.00 incl tax

LEDVANCE Panel PLUS LED Luminaires 0606 33W TRI UGR19 DALI Version

Product benefits

  • Available in dual wattage version, phase dimming version and DALI version
  • High luminous efficacy
  • Good glare reduction (UGR < 19)

Areas of application

  • Offices, conference rooms
  • Reception areas and foyers
  • Entrances / Hallways
  • Retail
  • Hospitality
  • Libraries, schools

Product features

  • TRI colour in 3000K, 4000K and 5700K
  • Beam angle: 90°
  • Type of protection: IP54
  • High luminous efficacy: up to 120 lm/W
  • Pre-wired with flex and plug
  • Lifetime: up to 50,000 h

Specifications

  • Nominal wattage: 33.00 W
  • Nominal voltage: 220…240 V
  • Mains frequency: 50…60 Hz
  • Nominal current: 200.000 mA
  • Power factor λ: > 0.90
  • Protection class: II
  • Operating mode: External LED driver

Photometrical data

  • Luminous flux : 4000 lm
  • Luminous efficacy : 120 lm/W
  • Color temperature : 3000 … 5700 K
  • Light color (designation) : Warm White, Cool White, Cool Daylight
  • Color rendering index Ra : > 80
  • Standard deviation of color matching : < 5 sdcm
  • Beam angle : 90 °
  • UGR : < 19

Dimensions and Weight

  • Length: 595.00 mm
  • Height: 32.00 mm
  • Width: 595.00 mm
  • Product weight: 1930.00 g

Application & Mounting

  • Ambient temperature range: 10…+40 °C
  • Type of protection: IP54/IP20
  • Dimmable: No
  • Mounting type: Recessed
  • Mounting location: Ceiling
  • Application environment: Indoor
  • Mounting length: 595.00 mm
  • Mounting width: 595.00 mm

Materials and Colors

  • Product color: White
  • Housing color: White
  • Body material: Steel
  • Mercury content: 0.0 mg
