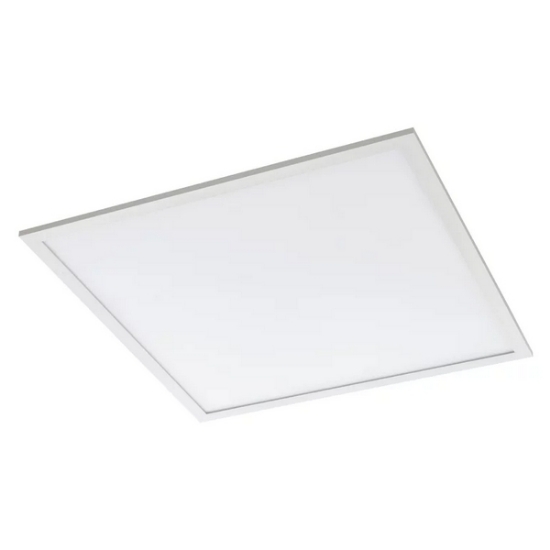

Picture of LEDVANCE LED Panel PLUS Luminaires 0606 33/27W TRI UGR19 Version

LEDVANCE LED Panel PLUS Luminaires 0606 33/27W TRI UGR19 Version

The LightingPro Plus 600x600 LED Panel is the ultimate solution for professional environments. This 27W LED panel features a UGR<19 low-glare micro-prismatic diffuser, specifically designed to reduce eye strain and improve productivity in offices and schools. With Tri-Colour technology (3000K/4000K/5000K) built-in, you can select your preferred light temperature on-site for maximum flexibility.
Part No: 4099854246944
$195.00 incl tax

LEDVANCE LED Panel PLUS Luminaires 0606 33/27W TRI UGR19 Version

Elevate your commercial lighting with the LED Panel Plus 0606-33. Engineered for performance, this square 600x600 LED panel fits seamlessly into standard ceiling grids. Unlike standard panels, the UGR19 version ensures compliant, comfortable lighting that meets Australian workplace health and safety standards for glare control.

Key Features:

  • Tri-Colour Selectable: One panel, three colors. Easily switch between Warm White, Neutral White, and Cool White.

  • Visual Comfort: The UGR<19 rating prevents harsh glare, making it perfect for computer-heavy workstations and classrooms.

  • High Efficiency: 27W power consumption provides brilliant illumination while significantly lowering energy bills compared to traditional fluorescent tubes.

  • Flicker-Free Performance: Equipped with a high-quality driver to ensure stable, healthy light output.

  • Versatile Install: Ideal for recessed T-bar ceilings, with options for surface mounting or suspension kits.

Product benefits

  • Available in dual wattage version, phase dimming version and DALI version
  • High luminous efficacy
  • Good glare reduction (UGR < 19)

Areas of application

  • Offices, conference rooms
  • Reception areas and foyers
  • Entrances / Hallways
  • Retail
  • Hospitality
  • Libraries, schools

Product features

  • TRI colour in 3000K, 4000K and 5700K
  • Beam angle: 90°
  • Type of protection: IP54
  • High luminous efficacy: up to 120 lm/W
  • Pre-wired with flex and plug
  • Lifetime: up to 50,000 h

Specifications

  • Nominal wattage: 27 W / 33 W
  • Nominal voltage: 220…240 V
  • Mains frequency: 50…60 Hz
  • Nominal current: 200.000 mA
  • Power factor λ: > 0.90
  • Protection class: II
  • Operating mode: External LED driver

Photometrical data

  • Luminous flux: 3240 … 4000 lm
  • Luminous efficacy: 120 lm/W
  • Color temperature: 3000 … 5700 K
  • Light color (designation): Warm White, Cool White, Cool Daylight
  • Color rendering index Ra: > 80
  • Standard deviation of color matching: < 5 sdcm
  • Beam angle: 90 °
  • UGR: < 19

Dimensions and Weight

  • Length: 595.00 mm
  • Height: 32.00 mm
  • Width: 595.00 mm
  • Product weight: 1834.00 g

Application & Mounting

  • Ambient temperature range: 10…+40 °C
  • Type of protection: IP54/IP20
  • Dimmable: No
  • Mounting type: Recessed
  • Mounting location: Ceiling
  • Application environment: Indoor
  • Mounting length: 595.00 mm
  • Mounting width: 595.00 mm

Materials and Colors

  • Product color: White
  • Housing color: White
  • Body material: Steel
  • Mercury content: 0.0 mg
