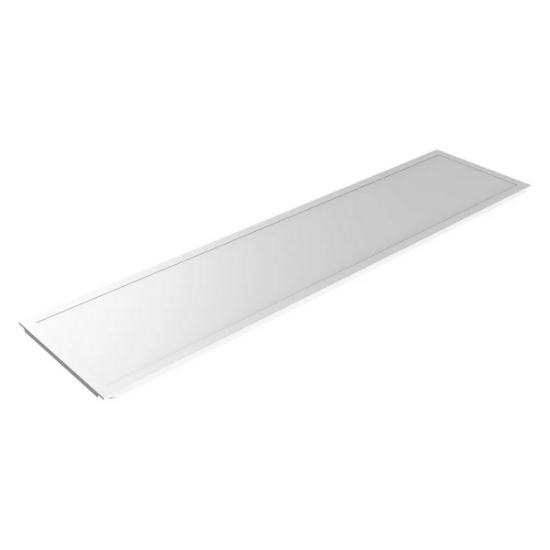

Picture of LEDVANCE LED Panel PLUS Luminaires 0312 33/27W TRI UGR19 Version

LEDVANCE LED Panel PLUS Luminaires 0312 33/27W TRI UGR19 Version

Upgrade your commercial space with the LED Panel Plus 0312. This high-performance 300x1200mm luminaire features dual-wattage (33W/27W) and Tri-Color technology, allowing you to select the perfect brightness and color temperature on-site. Designed with a UGR<19 rating, it significantly reduces eye strain and glare, making it the ideal bulk-buy solution for offices, schools, and medical facilities.
Part No: 4099854246968
$205.00 incl tax

LEDVANCE LED Panel PLUS Luminaires 0312 33/27W TRI UGR19 Version

The LED Panel Plus 0312-33 is a premium lighting solution engineered for comfort and performance. Specifically designed for commercial lighting applications, the UGR19 version minimizes eye strain and glare, complying with Australian standards for office environments.

Key features include:

  • Energy Efficient: Consumes only 27W while providing high-lumen output.

  • Tri-Colour Selectable: No need to choose a color temperature upfront; adjust between 3000K, 4000K, and 5000K via a simple switch.

  • Standard Dimensions: The 1200 x 300mm profile fits perfectly into standard T-bar ceiling grids or can be surface mounted.

  • Long Lifespan: Built with high-quality LED chips and a flicker-free driver to reduce maintenance costs.

Product benefits

  • Available in dual wattage version, phase dimming version and DALI version
  • High luminous efficacy
  • Good glare reduction (UGR < 19)

Areas of application

  • Offices, conference rooms
  • Reception areas and foyers
  • Entrances / Hallways
  • Retail
  • Hospitality
  • Libraries, schools

Product features

  • TRI colour in 3000K, 4000K and 5700K
  • Beam angle: 90°
  • Type of protection: IP54
  • High luminous efficacy: up to 120 lm/W
  • Pre-wired with flex and plug
  • Lifetime: up to 50,000 h

Specifications

  • Nominal wattage: 27 W / 33 W
  • Nominal voltage: 220…240 V
  • Mains frequency: 50…60 Hz
  • Nominal current: 200.000 mA
  • Power factor λ: > 0.90
  • Protection class: II
  • Operating mode: External LED driver

Photometrical data

  • Luminous flux: 3240 … 4000 lm
  • Luminous efficacy: 120 lm/W
  • Color temperature: 3000 … 5700 K
  • Light color (designation): Warm White, Cool White, Cool Daylight
  • Color rendering index Ra: > 80
  • Standard deviation of color matching: < 5 sdcm
  • Beam angle: 90 °
  • UGR: < 19

Dimensions and Weight

  • Length: 1195.00 mm
  • Height: 32.00 mm
  • Width: 295.00 mm
  • Product weight: 1844.00 g

Application & Mounting

  • Ambient temperature range: 10…+40 °C
  • Type of protection: IP54/IP20
  • Dimmable: No
  • Mounting type: Recessed
  • Mounting location: Ceiling
  • Application environment: Indoor
  • Mounting length: 1195.00 mm
  • Mounting width: 295.00 mm

Materials and Colors

  • Product color: White
  • Housing color: White
  • Body material: Steel
  • Mercury content: 0.0 mg
